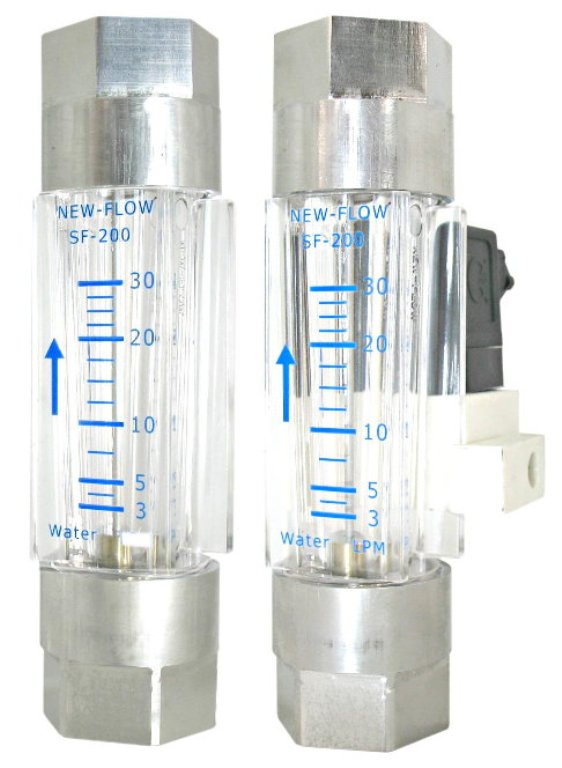

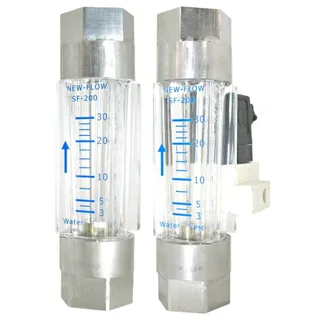

Đồng Hồ Đo Lưu Lượng VF200

ĐỒNG HỒ ĐO LƯU LƯỢNG VF200

Model                                            : VF200

Manufacture                                 : NEW - FLOW

Service                                         : Water, Air

Wetted parts material                 : Body-Polycarbonate (P.C) Plastic O-ring-Viton, Float-magnet coating with polypropylene (P.P)

Connection material                   : SS316; Plastic (P.P, P.V.C, PVDF)

Connection size                          : 3/8", 1/2", 3/4" NPT female available

Mounting                                      : vertical position

Temperature & pressure limits: 300 psig (20bar) @ 100°F(38°C)

Temperature limit                       : -10°C ~+60°C

Accuracy                                      : ±5% full scale

Alarm switch                                : one setting point, form A N.O. type bistable switch

Switch rating                               : AC 125V 0.5A / DC 100V 10W / Max. DC 250V<1mA

Weight                                          : approach 0.35kg

(Contact setting point should be within 10% to 80% of FS)

 Ordering information
