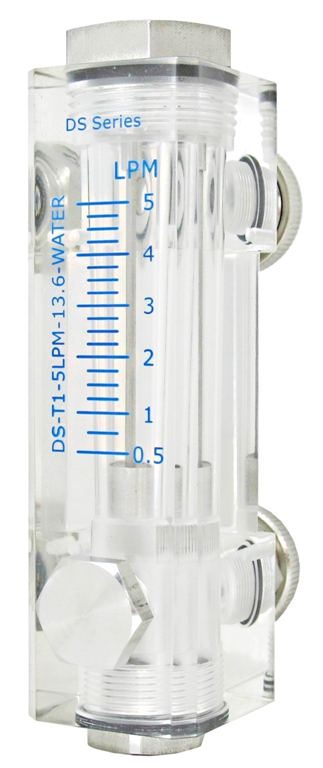

Đồng Hồ Đo Lưu Lượng DS SERIES without needle valv

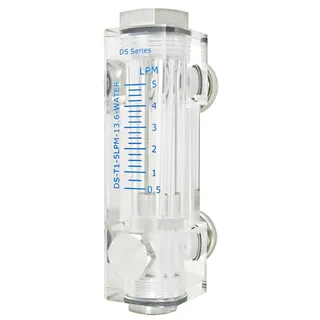

ĐỒNG HỒ ĐO LƯU LƯỢNG DS SERIES

Model                                         : DS SERIES

Manufacture                               : NEW - FLOW

Service                                         : Water, Air

Wetted parts materials                 : Body-Acrylic Plastic         O-ring-NBR, Viton Float-magnet coating with Nickel

Connecting material                     : SS316

Connecting size                             : 1/4", 3/8" NPT & 3/8" PT female available

Mounting                                        :vertical position

Temperature & pressure limits       : 150 psig (10bar) @ 100°F(38°C)

Temperature limit                           : -24°C~+54°C

Accuracy: ± 5% full scale

Alarm switch                                   : one or two setting points, form A N.O. type bistable reed switch

Switch rating                                   : AC 125V 0.5A / DC 100V 10W / Max. DC 250V<1mA

Weight                                             : 0.55~0.6kg

(Contact setting point should be within 10% to 80% of FS)

Ordering Information
