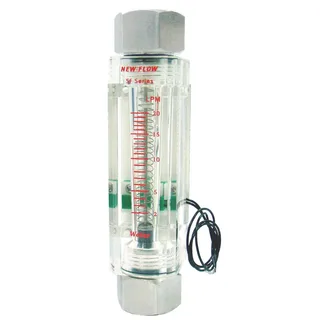

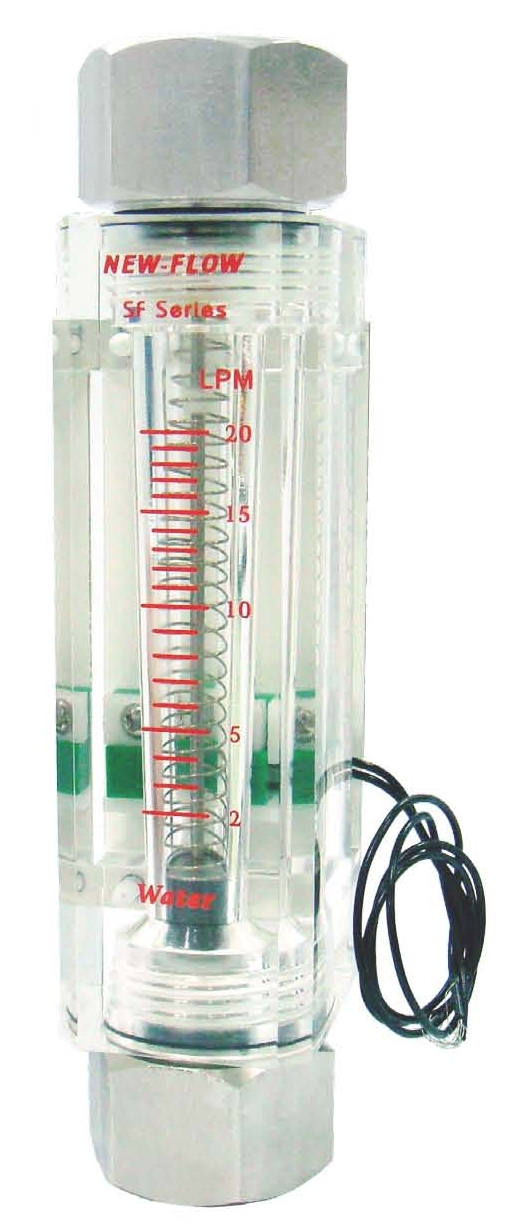

Đồng Hồ Đo Lưu Lượng SF100

ĐỒNG HỒ ĐO LƯU LƯỢNG SF100

Model                                               : SF100

Manufacture                                     : NEW - FLOW

Service                                             : liquid, oil

Wetted parts material                       : Body-Acrylic Plastic O-ring-NBR, Float-magnet coating with polypropylene (P.P)

Connection material                         : SS316

Connection size                                : 3/8", 1/2", 3/4" NPT female available

Mounting                                           : vertical and horizontal available, various flow directions

Temperature & pressure limits         : 150 psig(10bar) @ 100°F(38°C)

Temperature limit                             : -24°C~+54°C

Accuracy                                                : ±5% full scale

Alarm switch                                          : one or two setting points, form A N.O. type bistable reed switch

Switch rating                                         : AC 125V 0.5A / DC 100V 10W / Max. DC 250V<1mA

Weight                                                     : 0.45~0.5kg

(Contact setting point should be within 10% to 80% of FS)

Ordering information
