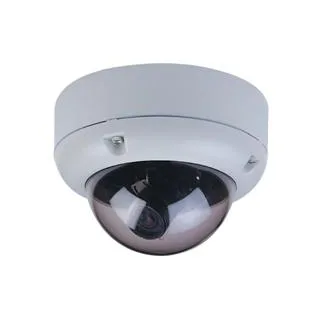

Camera vòm ốp trần SV-190/SV-170

Model No

SV-190

SV-170

Pickup Divece

B/W SORNY 1/3"Super HAD CCD

Pickup Elements

EIA

768 (H) x 494 (V)

510 (H) x 492 (V)

CCIR

752 (H) x 582 (V)

500 (H) x 582 (V)

Scanning System

EIA

2:1 Interlace, V: 60Hz, H: 15.750 KHz

CCIR

2:1 Interlace, V: 50Hz, H: 15.625 KHz

Sync. System

Inernal Sync

Video output

1 Vp-p Composite Output, 75ohms

Lens

Vari-focal lens f=3.7~12, 4~9, or 9~22 mm

Auto IRIS Control

DC Drive IRIS control

Resolution

600 TV Lines (Horezontal)

420 TV Lines (Horezontal)

Gamma Correction

0.45

Minimum illumination

0.2 Lux / F=2.0

0.1 Lux / F=2.0

Shutter Control

EIA

Auto: 1/60 to 1/100,000 Sec. ON/OFF switchable

CCIR

Auto: 1/50 to 1/100,000 Sec. ON/OFF switchable

S/N Ratio

> 48 db, AGC off

Gain Control

Auto

Black Light Compensation

ON/OFF switchable

Power Sousce

DC 12V;Dual power DC 12V / AC 24V

Power Consumption

150 mA

Operating Temp.

-10^oC~50^oC (14^oF~122^oF)

Dimensions

98.5(H) x 140mm

Weight

Approx. 2200g
