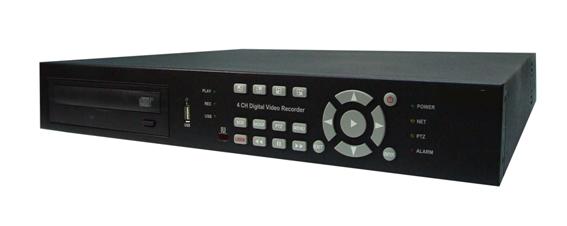

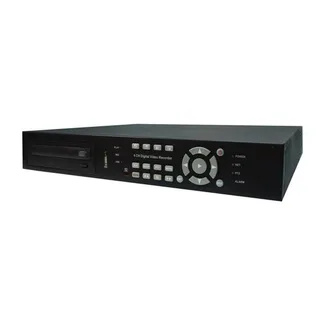

Embedded Stand Alone 4 channel Digital Video Recorder
-
Advanced MPEG 4 Compression
-
Triplex Operation: Simultaneous Live Display/ Playback, Network Operation and Recording
-
Up to 704 x 480 (NTSC), 704 x 576 (PAL) recording Resolution
-
Up to 120 (NTSC) / 100 (PAL) Image Persecond Recording Rate at
352 x 240 (NTSC) / 352 x 288 (PAL) Resolution
-
Simultaneous Monitoring via Composite, S-Video, VGA and Spot out
-
Recording quality, resolution, and frame rate setting for each individual channel
-
Color, Contrast, Brightness, Sharpness setting for each individual camera
-
Two ways audio capabilities via Network
-
Local or remote PtZ control
-
4 Audio inputs, 1 Audio output
-
4 Alarm inputs, 1 Replay output
-
CD-RW or USB port for video back up
-
Full function remote control software
-
Support for continuous, Motion, Alarm, and Schedule Recording for maximum utilization of Hard Disk Drives
|
Model No.
|
SDT-400
|
|
Compression
|
NTSC
|
PAL
|
|
Video Input
|
4 BNC
|
|
Video Output
|
4 BNC loop-out, 1 Monitor out, 1 Spot-out, S-Video, VGA
|
|
Compression
|
Advanced MPEG 4
|
|
Live Display
|
Resolution
|
704 x 480
|
704 x 576
|
|
Speed
|
120 fps
|
100 fps
|
|
Multi Screen
|
Full screen, Quad, PIP, Sequence
|
|
Recording Speed
|
352 x 240 : 120 fps
|
352 x 288 : 120 fps
|
|
704 x 240 : 60 fps
|
704 x 240 : 60 fps
|
|
704 x 480 : 30 fps
|
704 x 480 : 30 fps
|
|
Recording Mode
|
continuous, Motion, Alarm
|
|
Motion Detection
|
132 grids setting per camera
|
|
Alarm
|
4 Inputs / 1 Output
|
|
Audio
|
4 Inputs / 1 Output
|
|
PTZ Control
|
RS485 Interface
|
|
Network
|
TCP/IP, IE, AP
|
|
HDD
|
Maximum 2 HDD installation
|
|
Backup
|
CD-RW, USB 2.0, Internet
|
|
Remote Controller
|
Yes
|
|
Power Source
|
DC12V, 100~240VAC, 1/0.5A,60/50Hz Power Adapter
|
|
Operation Temperature
|
5oC ~ 50oC / 41oF~122oF)
|
|
