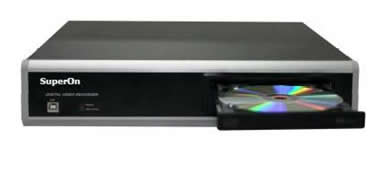

Model No.
|
SER-480
|
SER-480V
|
|
Video Input
|
4 camera inputs (BNC), 1 Vp-p, 75 ohm
|
|
Video Output
|
1 BNC video output (1 Vp-p, 75 ohm) for main monitor
|
|
1 BNC video output (1 Vp-p, 75 ohm) for spot monitor
|
|
Video Compression
|
M-MPEG
|
|
Recording Resolution
|
704 x 240 (NTSC), 704 x 288 (PAL)
|
|
352 x 240 (NTSC), 352 x 288 (PAL)
|
|
Alarm Input
|
4 alarm Inputs (NO/NC selectable in SETUP menu)
|
|
Alarm Output
|
1 alarm output (NO/NC)
|
|
Post Alarm
|
Duration of alarm output: 1 sec~300 sec. selectable
|
|
Video Display
|
Full, Quad, PIP, SEQ
|
|
Display Speed
|
Real Time display
|
|
Network
|
Ethernet (TCP/IP).
|
|
Multiplex function
|
Triplex (Playback/ Recording/Network)
|
|
VGA Output
|
-
|
Yes
|
|
Backup Device
|
CD-RW
|
CD-RW, USB 2.0
|
|
Storage Capacity
|
up to 1 HDD with no limitation in capacity
|
|
Recording Mode
|
Continous, Shedule, Motion, Alarm
|
|
Playback Search
|
Event Search, Date / Time Search, Search Bar
|
|
Recording Speed (NTSC/PAL)
|
Max.120/100 IPS
|
|
Multi-language
|
English, Spanish, German, Chinese, Japanese, Russian...
|
|
Motion Detection
|
Area division: 16 x 12 / Detection Division:32 x 24
|
|
backup
|
VCR, CD-RW back-up, Download via Network
|
|
PTZ Control
|
RS-485
|
|
Firmware upgrade
|
USB port for firmware upgrate, CD-RW
|
|
Serial I/F
|
RS-485: For PTZ camera control
|
|
RS-232C:For operation using keyboard of PC
|
|
Power Source
|
DC 12V +-10%
|
|
Dimension
|
360(W) x 343(H) x 70(D)mm
|
|
Weight
|
4Kgs
|
