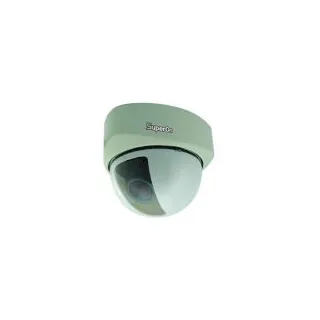

Camera vòm ốp trần SD3X-540/SD3X-370

Model No

SD3X-540

SD3X-370

Image Sensor

1/3” Sony Super HAD

Sync System

Internal Sync

Pickup Elements:

NTSC

811 (H) x 508 (V)

510(H) x 492 (V)

PAL

795 (H) x 596 (V)

500 (H) x 582 (V)

Scanning System:

NTSC

2:1 interlace; NTSC V: 60Hz, H: 15.750KHz

PAL

2:1 interlace; PAL   V: 50Hz, H: 15.625KHz

Video

1Vpp composite Output, 75 Ohms

Resolution

540 TV lines (Horizontal)

420 TV lines (Horizontal)

Shuter Control

Automatic, 1/50 (60) sec. ~1/100.000 sec; ON/OFF switchable

Gamma Correction

r = 0.45

Minimum illumination

0.4 Lux @ F=20, 0 Lux when IR LED ON

S/N Ratio

> 48dB

Lens

Aspherical veri-focal lens: f=3.8~9.5;

Gain Control

Auto

Auto White Balance

2.500K~9.500K

3.200K~9.200K

Power Source

12VDC +/- 10%

Power Consumption:

2.0w (max)

1.8w (max)

Operation temperature

-10^oC~+50^oC/RH 85 or less

Dimensions

118 (W) x 88 (H) mm

Weight

Apprx. 350g
