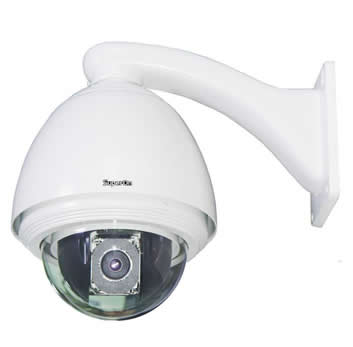

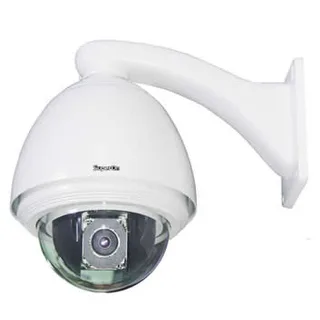

Model
|
SPO-3826
|
|
Type
|
Outdoor
Weatherproof
|
|
pickup
Device
|
Color
1/4"SONY Exview CCD
|
|
Pickup
Elements
|
NTSC
|
768
(H) X 494 (V)
|
|
PAL
|
752
(H) X 482 (V)
|
|
Scanning
System
|
NTSC
|
2:1
Interface, V:60Hz, H: 15.750KHz
|
|
PAL
|
2:1
Interface, V:50Hz, H: 15.625KHz
|
|
Resolution
|
Day
mode: 480TV lines, Horizontal: Night mode: 570 TV lines, Horizontal
|
|
Video
Output
|
VBS: 1
Vp-p, 75 ohms, Y/C output
|
|
IR
Cut Filter
|
Yes
|
|
Lens
|
26X
Zoom, f=3.5mm(wide)~91mm(tele)/F=1.6~3.8
|
|
Day/Night
Mode
|
Auto
|
|
Angle
of View
|
55owide
to 2.3otele
|
|
Min.Working
Distance
|
320mm(wide),
1500 mm (tele)
|
|
Zoom
|
312X:
26X optical, 12X digital
|
|
Sensitivity
|
0.7
Lux, color mode, 35 IRE: 0.01 lux B/W mode
|
|
Sync.System
|
Internal/External
(V-lock)
|
|
White
Balance
|
Auto
with manual override
|
|
Shutter
Speed
|
1/1 ~
1/10,000 Sec.
|
|
Gain
Control
|
Auto/Manual
(-3-28 dB, 2 steps)
|
|
IRIS
Control
|
Auto
with Manual override
|
|
Back
Light Comp.
|
Auto
with Manual override
|
|
S/N
Ratio
|
>50
dB, AGC Off
|
|
Focusing
System
|
Auto
with Manual override
|
|
Privacy
Zone Masking
|
ON/OFF
|
|
Horizontal
Relation
|
360Ao
continuous relation, 180o auto-flip
|
|
Rolate
Speed
|
Horizontal:
0.5"/S-280"/S Vertical:0"
|
|
Preset
Positions
|
128
presets, Rotation Speed & Idle Time programmable
|
|
Cruise
Tours
|
8
Groups, 16 preset Position for each group
|
|
2
points Scanning
|
Scanning
Speed, Idle time programmable
|
|
Character
Input
|
No
|
|
Input
|
No
|
|
Operation
Menu
|
English
OSD Menu
|
|
Privacy
Zone Masking
|
2
|
|
Cruise
Route
|
No
|
|
Auto
Restore
|
Can
be Set
|
|
Baud
Rate
|
1200bps/
2400bps/ 4800bps/9600bps Selectable
|
|
Control
Format
|
RS485
|
|
Multiple
Protocols
|
Super
On, Pelco-D, Pelco-P, Kalatel, Samsung
|
|
Heater/Fan
|
Auto
starts
|
|
Operating
Temp.
|
-40oC~+60oC
(-40oF~140oF)
|
|
Weather
Resistant
|
IP 66
|
|
Power
Source
|
AC
24V +-5%
|
|
Power
Consumption
|
30W
Max. ; 50 Max. Heater / Fan On
|
