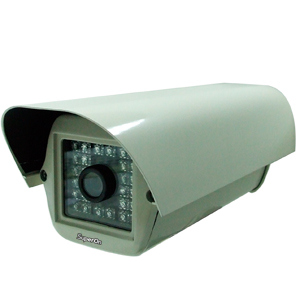

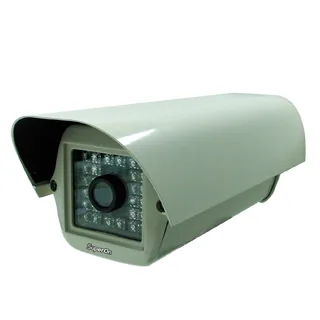

Camera hồng ngoại SWH-278

Model

SW-278

Pickup device

1/3” Sony Super HAD CCD

Pickup Elements

NTSC

510(H) x 492(V)

PAL

512(H) x 582(V)

Scanning System

NTSC

2:1 Interlace; V: 60Hz, H: 15.750KHz

PAL

2:1 Interlace; V: 50Hz, H: 16.625KHz

Scanning system

Internal sync

Video Output

1Vp-p Composite Output, 75 ohms

Lens

Board lens f=4.3mm, 6.0mm, 8.0mm

Resolution

420 TV lines (Horizontal)

Gamma Corection

0.45

Minimum Illumination

0.2 lux/F2.0; 0 lux when IR LED on

S/N ratio

>48dB, AGC off

Shutter Control

NTSC

Auto: 1/60 to 1/100000 sec

PAL

Auto: 1/50 to 1/100000 sec

White balance

Auto

Gain control

Auto

IR LED power

CDS auto control

IR wavelength

850nm

IR LED range

30m

IR LED

28 IR LED/life: 10000 Hours

Power source

DC 12V ~ 10%

Power Consumption

IR ON

450mA

IR OFF

130mA

Operation Temperature

-10oC ~ + 50oC (14oF ~ 122oF)

Dimension

115(W) x 100(H) x 330(D)

Weight

Approx. 1110g
