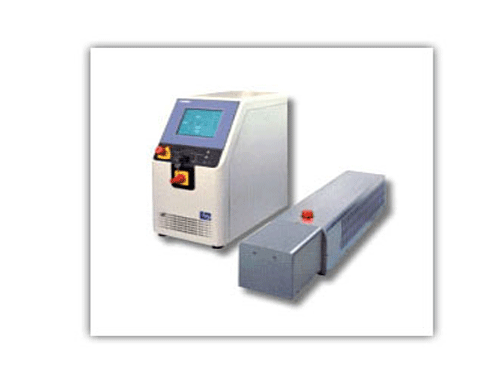

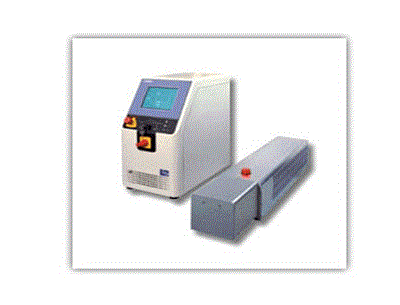

Thông tin sản phẩm
Features : High-speed marking
Special-design control together with high performance scanning head
Marking speed up to 600 characters per second
Featuring application
Automatic calendar, time limit calculation and counter
Marking on the fly
2D matrix and bar code marking
Human factor controls
Mini screen of touch-panel, easy-to-use and space saving
Human-factor control programs for editing characters
Modular design
Ethernet and USB interfaces are available
High precision
Strict-mechanism design, to reach high efficient marking with stable and precise repeatability
Ensures marking precision to increase yield rates
High reliability
2-year warranty
Reliable scanning head design and controls
Specification : Laser Source: 12W / 30W air-cooled laser Control System:
Marking Mode: vector, raster, pulse
Marking Style: Stationary, marking on the fly
No. of Object: 256 objects (max.)
Character Height: 0.5 ~ 100mm (adjustable by 0.2mm)
Scanning Head: Working Area: 50x50 mm, 100x100 mm
Working Distance: ( 50x50 mm ), 142±1mm ( 100x100mm )
Scanning Speed: 2500 mm/sec (max.)
Marking Speed: 600 characters/sec under single-stroke character of 1mm height
Resolution: 5 (micro-meter)
Standard Configuration:
Pilot laser
Emergency stop for laser
Safety shutter
6.4” TFT touch screen
HDD: 2.5”/20GB
RAM: 128MB
Input/Output terminal block
HMI based on Windows CE operating system
Software: True type font transfer
Customer font edit
Customer logo edit
Peripherals: Power :1φ/220V/AV, 700/1200W, 50/60Hz
Input: Run/Stop
Output: Laser Ready/Laser Busy
Interface: Ethernet and USB port
Weight: Laser Rail: 15Kg(12W), 20Kg(30W)
Cabinet: 23Kg(12W), 24Kg(30W)
Dimension:Laser Rail:
12W: 780x150x154 mm
30W: 830x180x184 mm
Cabinet: 465x250x485 mm
|
Power
|
110/220 V/AC; 700/1200W; 50/60Hz
|
|
Input
|
Run/Stop
|
|
Output
|
Laser Ready/Laser Busy
|
|
Interface
|
Ethernet and USB port
|
|
Weight
|
Laser rail: 15Kg (12W)
|
20Kg (30W)
|
|
Cabinet
|
23Kg (12W)
|
24Kg (30W)
|
|
Dimension
|
Laser rail: 830x180x184 (mm)/12W
|
780x150x154 (mm)/30W
|
|
Cabinet
|
465x250x485 (mm)/12W
|
465x250x485 (mm)/30W
|
