ITEM
|

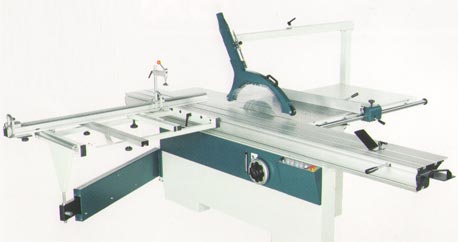

D401
|
Sliding table dimension
|
3,200 x 360 mm
|
Cast iron table
|
548 x 896 mm
|
Extension table (rear)
|
952 x 896 mm
|
Extension table (front)
|
320 x 830 mm
|
Table size
|
1,500 x 1,726 mm
|
Round rail
|
j 40
|
Main saw blade (max)
|
j 400 (16”)
|
Main saw bore
|
j 30 mm
|
Max. cutting height at 90° (355 mm)
|
105
|
Max. cutting height at 45° (355 mm)
|
70
|
Main motor power (3 ph)
|
7.5 HP (5.5 kw)
|
Main blade speed
|
3,000/ 4,000/ 5,000 r.p.m.
|
Scoring saw blade
|
j 120
|
Scoring saw blade bore
|
j20
|
Scoring blade motor power
|
1HP (0.75 kw)
|
Scoring blade speed
|
8,000 r.p.m.
|
Cutting width
|
1,300 mm
|
Cutting width adjustment
|
Manual
|
Main saw blade tilting adjustment
|
Manual (0°~45°)
|
Main saw height adjustment
|
Motorized
|
Scoring saw adjustment
|
Manual
|
Saw guard
|
Simple (overhead guard optional)
|
Dust collection system
|
120 mm/60 mm
|
N.W./G.W./MEAS.(machine)
|
620/720 kgs (2,110 x 1,130 x 1,120 mm)
|
N.W./G.W./MEAS.(sliding table)
|
89/97 kgs (3,300 x 430 x 220 mm)
|
N.W./G.W./MEAS.(overhead guard)
|
89/40 kgs (1,420 x 980 x 120 mm)
|
Ctn .Q’ty:
|
8/19 sets
|
