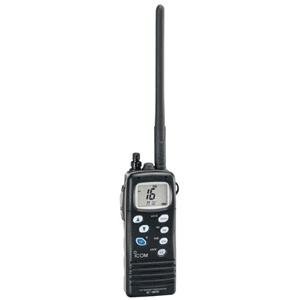

GENERAL
|
|
Frequency range
|
: TX 156.025 57.425 MHz
RX 156.025 63.275 MHz
|
|
Usable channels*
|
: All U.S.A.,
International and Canadian channels;
plus 10 weather channels (U.S.A.
only)
|
|
Mode
|
: 16K0G3E (FM)
|
|
Power supply requirement
|
: 7.4 V DC (BP-215 only)
|
|
Current drain (at 7.4 V DC)
|
: Tx 1.5 A (at 5 W output)
Rx 200 mA (at AF max.)
20 mA (at Stand-by)
|
|
Operating temperature range
|
: -20°C to +60°C ; -4°F to +140°F
|
|
Antenna connector
|
: SMA (50 )
|
|
Dimensions
(projections not included)
|
: 52.5(W) × 129(H) × 30(D) mm;
2 1/16(W) × 5 3/32(H) × 1 3/16(D) in
|
|
Weight (approx.; with BP-215)
|
: 280 g; 9.9 oz
|
|
TRANSMITTER
|
|
Output power*
|
: 5.0 W (Hi), 1 W (Low) and 0.5 W (Low2)
|
|
Modulation system
|
: Variable reactance frequency modulation
|
|
Max. Frequency deviation
|
: ±5 kHz
|
|
Audio harmonic distortion
|
: Less than 10% (at 60% mod.)
|
|
Spurious emissions
|
: IC-M1V Less than 65 dB
IC-M1EURO V 0.25 µW
|
|
RECEIVER
|
|
Intermediate frequencies
|
: 1st 21.7 MHz 2nd 450 kHz
|
|
Sensitivity
|
|
: IC-M1V(12 dB SINAD)
|
Less than 0.35 µV
|
|
IC-M1EURO V(20 dB SINAD)
|
1.0 µV typical(emf)
|
|
|
Squelch sensitivity(at threshold)
|
|
: IC-M1V
|
Less than 0.35 µV
|
|
IC-M1EURO V
|
Less than 0.71 µV
|
|
|
Adjacent channel selectivity
|
|
: IC-M1V
|
70 dB typical
|
|
IC-M1EURO V
|
70 dB
|
|
|
Spurious response
|
|
: IC-M1V
|
70 dB typical
|
|
IC-M1EURO V
|
70 dB
|
|
|
Intermodulation rejection ratio
|
|
: IC-M1V
|
70 dB typical
|
|
IC-M1EURO V
|
68 dB
|
|
|
Hum and noise ratio
|
: More than 40 dB
|
|
Audio output power
|
: 0.35 W typ. at 10% distortion with an 8 load
|
