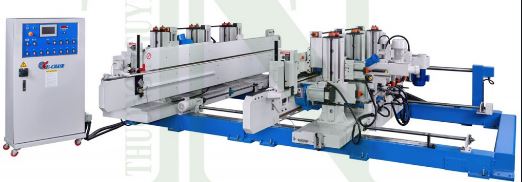

DOUBLE – AND TENONER
MODEL : ECT-812AB
Working range : 300-2600mm
Max.working thickness calibration : 120mm
Scoring saw system : 2hp x 2units at 3000r.p.m ( 50hz)
(sawblade) Φ 205mm; (spindle) Φ 25.4mm, length 60mm; tittable to +- 90⁰
Main saw system : 5HP x 2 units at 3000rpm(50hz);
(sawblade ) Φ 255mm; (spindle ) Φ 25.4mm, length 60mm; tittable to to +- 90⁰
- 1st Moulding system : 5hp x 2units at 6000rpm
(belt driven spindle ); ( cutter) Φ 130-210mm (spindle ) Φ 40mm, length 90mm; tittable to -10⁰ + 20⁰
- 2nd Belt sanding system : 3hp x 2units at 0-1500rpm
(variable via inverter); oscillating motor 0.25hp x 2units ; sanding belt width 50-120mm; sanding belt length 2450 ; tittable to +30⁰, -20⁰
Feed motor : 5hp
Motor for width adjustment : 1hp
Total horsepower : 53hp
