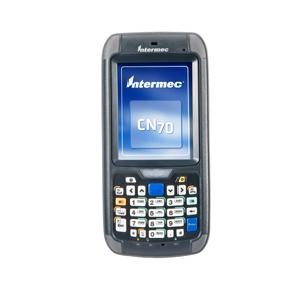

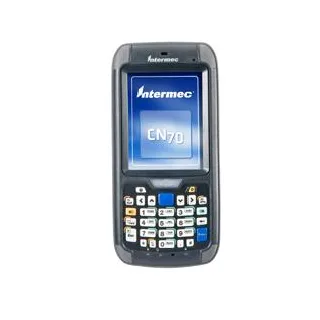

Máy tính di động Intermec CN70 / CN70e

Accessories

• FlexDock modular docking system
• Vehicle dock
• Vehicle holder
• Snap-on adaptors
• Removable scan handle
• Magnetic stripe reader
• 6822 full page printer
• PW50 workboard printer

Standard Configuration:
• Integrated Camera Option: 5-Megapixel autofocus color camera with LED flash
• Global Positioning System: 12-channel Integrated GPS; Network-independent autonomous mode; supports assisted operation via WAN
• Accelerometer: Embedded accelerometer enables automatic or application-specific features such as screen rotation or system suspend
• IrDA
• Integrated Bluetooth® Class II, Version 2.1+EDR

Display

• 8.9cm (3.5in)Transmissive VGA
• 480 x 640 pixels
• 65,536 (16 bit RGB) Colors
• High-Durability Touch Screen
• LED Backlight
• Ambient Light Sensor

Environment

Drop Survival: 2.4 m (8ft.) to concrete per MIL-STD 810G, 1.8m (6 ft) to concrete across operating temperature
range per MIL-STD 810G 2,000 (1m) tumbles per IEC 60068-2-32 specification
Electrostatic Discharge: +/- 15 kV air discharge; +/- 8 kV direct discharge
Humidity: Relative Humidity: Non-condensing, 95%
Operating Temperature: -20° C to +60° C (-4° F to +140° F)*
Recharging Temperature: +5° C to +35° C (41° F to 95° F)
Storage Temperature: -30° C to +70° C (-22° F to +158° F)
Environmental Protection: Rain & Dust Resistance: IP67
Non-Incendive Version: Products in the 70 Series family with NI certification comply with the following:
• Suitable for use in Division 2 locations
• Safety: cULus Listing – ISA/ANSI 12.12.01
• Gases: Class I – Groups A, B, C, D
• Dusts: Class II – Groups F, G
• Fibers and flyings: Class III
• * Max Ambient: 50°C T6

Keypad

• Numeric keypad with backlit shifted plane legends
• QWERTY keypad
• All keypad options feature hard keycaps with laser-etched legends.

Memory and Storage

Flash ROM: 1 GB Flash (800 MB available)
Memory/Storage Extensions: Customer-accessible micro-SD slot for removable memory cards up to 32 GB
RAM Memory: 512 MB RAM (384 MB available)

Microprocessor

Multi-Processor Architecture: Texas Instruments® OMAP 1 GHz multi-engine processor architecture

Operating System

Microsoft Windows Embedded Handheld 6.5

Physical Characteristics

Height: 3.4 cm (1.34 in)
Length: 16.9 cm (6.65 in)
Width: 8.0 cm (3.15 in)
Weight: 450 g (15.9 oz) with battery

Power

Battery Capacity: 3.7 V, 4000 mAh
Battery Type/Supply: IEEE 1725 compliant, Li-Ion, removable, rechargeable

Software

Application Development:
Intermec Developer Library: www.intermec.com/dev

Apps and Components:
• VERDEX (Imaging-based data extraction and verification)
• eMDI (Mobile Document Imaging)

Data Management:
• Skynax® Mobile Communications

Smart Systems Support:
• Device Management: Intermec SmartSystems™ support includes ScanNGo provisioning for use alone or with device management software from Intermec ISVs
• Device Health Monitoring: Remote access requires SmartSystem Management option

Scan Engine Options

EA30 high performance motion-tolerant 2D Imager; white LED illumination; red laser aimer optimized for all lighting conditions; 35 degree downward scan angle; Capable of scanning all common 1D and 2D barcodes; 1D as small as 5 mil; PDF as small as 6.6 mil; Data Matrix as small as 7.5 mil; and standard UPC codes from distances up to 33 cm (13 in).
