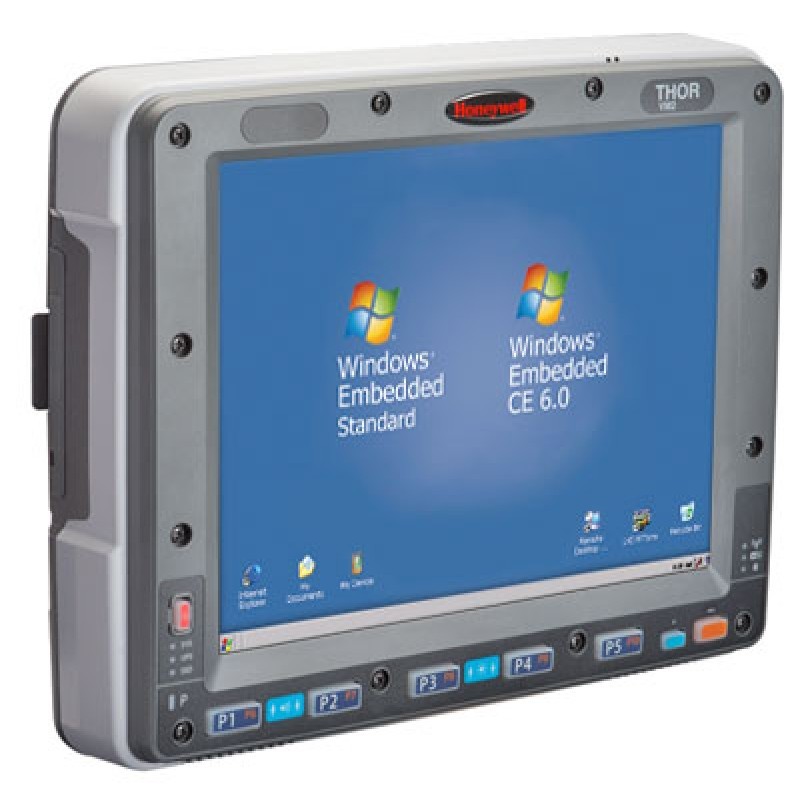

Máy kiểm kho di động Honeywell Thor VM2

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Bộ vi xử lý:Intel® Atom Z530 1.6GHzHệ điều hành:Microsoft® Windows® CE 6.0, Microsoft® Windows® 7 Pro, Microsoft® Windows® Embedded Standard 7 (WES 7), Microsoft® Windows® Embedded Standard (WES 2009)Bộ nhớ:CE 6.0: 1GB, Windows 7 Pro, WES 7 & WES

Bộ vi xử lý:	Intel® Atom Z530 1.6GHz
Hệ điều hành:	Microsoft® Windows® CE 6.0, Microsoft® Windows® 7 Pro, Microsoft® Windows® Embedded Standard 7 (WES 7), Microsoft® Windows® Embedded Standard (WES 2009)
Bộ nhớ:	CE 6.0: 1GB, Windows 7 Pro, WES 7 & WES 2009: 2GB, DDR2 SDRAM
Phần mềm hệ thống:	CE 6.0: Microsoft® Internet Explorer 6, Microsoft® on-screen keyboard, DCWedge barcode wedge Windows 7 Pro & WES 7: Microsoft® Internet Explorer 10, Freefloat Key on-screen keyboard, Freefloat Link wedge WES 2009: Microsoft® Internet Explorer 8, Microsoft® on-screen keyboard, Freefloat Link wedge
Phần mềm tuỳ chọn:	CE 6.0: RFTerm TE, Naurtech CETerm & Industrial Browser, and Stay-Linked Terminal Emulators, Wavelink Avalanche & eXpressConfig network management Windows 7 Pro, WES 7 & WES 2009: RFTerm TE, Freefloat Access TE Optional Remote Mastermind (ReM) remote device management
Dung lượng lưu trữ:	CE 6.0: 1GB Windows 7 Pro: 32GB, optional 4GB industrial SD secondary SSD WES 7: 16GB, optional 4GB industrial SD secondary SSD WES 2009: 4GB, 8GB
Xử lý đồ hoạ:	Intel® GMA 500
Màn hình:	9.7˝ (246 mm) XGA (1024x768) LED backlit display, 400 NIT, Optional screen blanking
Màn hình cảm ứng:	Industrial touch panel with resistive touch and support for finger touch and stylus
Bàn phím:	Five programmable multi-function keys
Âm thanh:	Audio for headset, Integrated stereo speakers w/ adjustable volume control, Integrated microphone
Power Supply & UPS:	10 to 60 VDC isolated, Optional external converters for AC (90-240VAC) & extended range DC (60-150 VDC); Integrated Li-ION maintenance UPS with 30-min life at -20°C standard
Cổng kết nối:	1x USB 2.0 powered host port, 1x USB 1.1 client port, 2x powered RS-232 COM ports, 1x CAN-bus port, 1x Headset port, DC power input & ignition control input, RF Antenna ports for WiFi (2), WWAN (1) & GPS (1)
Mở rộng lưu trữ:	User installable expansion slot supports 1GB and 4GB SD card
WWAN	Optional software definable (data only) 3.75G radio with five-band UMTS/HSPA+ (800/850/900/1900/2100MHz), quadband GSM/GPRS/EDGE (850/900/1800/1900MHz) and dual-band EV-DO/CDMA (800/1900)
WLAN:	Microsoft® Windows® CE 6.0: 802.11 a/b/g Windows 7 Pro, WES 7 & WES 2009: 802.11 a/b/g/n Wi-Fi™ – certified, CCX certified for data
WLAN Security:	Authentication: Support for a full range of 802.1X (EAP) types, including EAP-TLS, PEAP-MSCHAPv2, PEAPGTC, LEAP, and EAP-FAST Encryption: Support for Static, pre-shared, and dynamic encryption keys, 40-bit and 128-bit keys, WEP, WPA (TKIP), and WPA2 (AES) Encryption Methods
WLAN Antennas:	Dual internal antennas, dual external remote and direct connect antenna accessories
WPAN:	Bluetooth® 2.0+EDR standard, internal antenna
GPS:	Integrated Assisted GPS (A-GPS) with fast position acquisition and low power consumption. Included with WWAN radio
Môi trường phát triển:	Honeywell SDK available for Windows® CE 6.0; Standard Windows® SDK for Windows 7 Pro, WES 7, WES 2009
