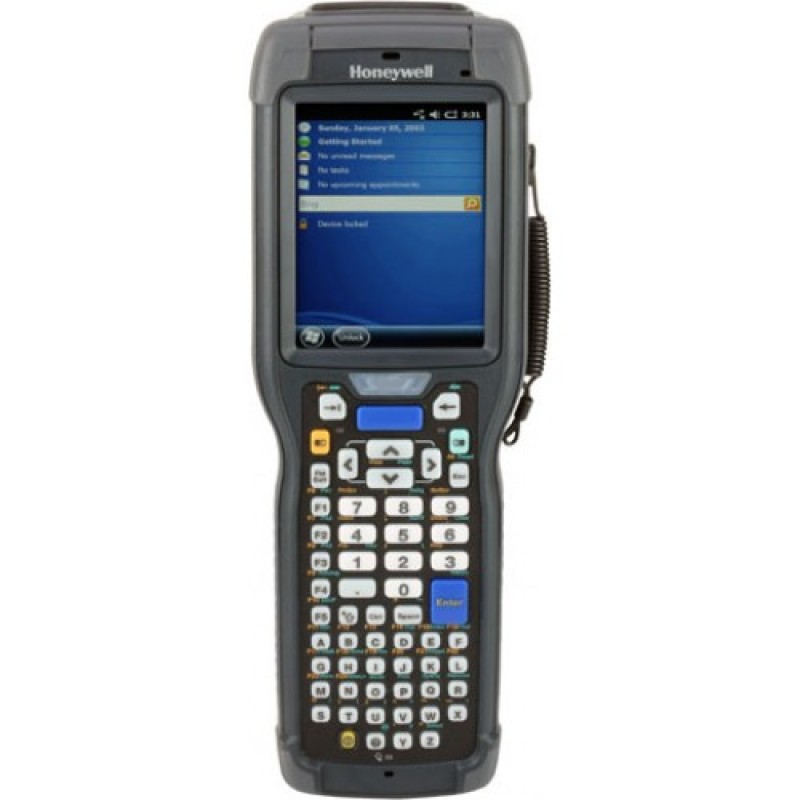

Máy kiểm kho di động Honeywell CK75

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

CK75 Technical Specifications / Thông số kỹ thuật :MECHANICALDimensions with Battery (L x W x D) : 23.7 cm x 8.0 cm x 5.0 cm (9.33 in x 3.16 in x 1.98 in)Weight : 584 g (20.6 oz) with batteryWidth : Grip area 6.42 cm (2.53 in)ENVIRONMENTALOperating

CK75 Technical Specifications / Thông số kỹ thuật :

MECHANICAL

Dimensions with Battery (L x W x D) : 23.7 cm x 8.0 cm x 5.0 cm (9.33 in x 3.16 in x 1.98 in)
Weight : 584 g (20.6 oz) with battery
Width : Grip area 6.42 cm (2.53 in)

ENVIRONMENTAL

Operating Temperature
Standard Temp Unit: -20°C to +60°C (-4°F to +140°F), transitory exposures to -30°C (-22°F)
Cold Storage Unit: -30°C to +60°C (-22°F to +140°F)
Storage Temperature : -30°C to +60°C (-22°F to +140°F)
Charging Temperature : +5°C to +35°C (+44°F to +95°F)
Relative Humidity : Non-condensing, 95%
Rain and Dust Resistance : IP67
Cold Storage IP65
Tumble Spec : 2,000 (1 m) tumbles per IEC 60068-2-32 specification
Drop Spec : 2.4 m (8 ft) to concrete per MIL-STD 810G; 1.8 m (6 ft) to concrete across operating temperature range per MIL-STD 810G
Electrostatic Discharge : +/-15 kV air discharge, +/-8 kV direct discharge

POWER

Battery Pack : 3.7 V, 5200 mAh; Li-Ion, removable, rechargeable

MICROPROCESSOR

Texas Instruments 1.5 GHz OMAP 4470 dual-core, multi-engine processor architecture

MEMORY AND STORAGE

RAM : 2 GB RAM
ROM : 16 GB Flash
Storage Expansion : Customer-accessible micro-SD slot for removable memory cards up to 32 GB

DISPLAY

8.9 cm (3.5 in) Transmissive VGA
480 x 640 pixels
65,536 (16-bit RGB) colors
High-durability touch screen
Hardened Corning® Gorilla® Glass display for superior durability
LED backlight
Ambient light sensor

STANDARD COMMUNICATIONS

USB – Full Speed 2.0 Host, USB – Full Speed 2.0 Client

SOFTWARE

WINDOWS EMBEDDED HANDHELD 6.5

INTEGRATED RADIOS

Wireless LAN : IEEE 802.11a/b/g/n dual-band WLAN
Security : Wi-Fi Certified for WPA and WPA2, WAPI Certified
Authentication : IEEE 802.1x
Cisco Compatibility : CCXv4
Encryption : WEP (64- or 128-bit), AES, TKIP
Wireless PAN : Integrated Bluetooth® Power Class 1.5 Version 4

AUDIO SUPPORT

Supports VOIP/speech recognition/push-to-talk applications; front and rear speakers; rear speaker >80 dB at 40 cm (15.7 in); front receiver and front panel microphone for handset audio communication and audio recording; wireless Bluetooth headset support; wired headset support via snap-on adapter

INTEGRATED SCANNER

EX25 Near/Far High-Performance 2D Imager:Capable of scanning 1D and 2D barcodes from 15.2 cm to 16.2 m (6 in to 50 ft)
N5603ER High-Performance 2D Imager:Capable of scanning all common 1D and 2D barcodes; 1D as small as 5 mil; standard UPC codes up to 53 cm (21 in)
Optional licensing for Direct Part Marking (DPM) reading capability

INTEGRATED CAMERA OPTION
