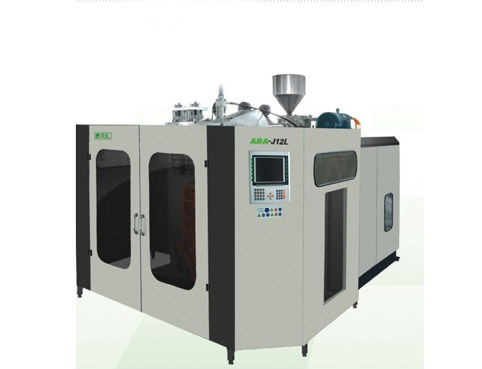

Máy thổi chai HD 12L 1 kìm

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Modelunit J12LMax. Container capacityL/Cavity12/1 7/2Output (dry cycle)PCS/Hr700Screw diameterMMΦ80（main）+Φ40(second layer)+Φ30(visual line)Screw L/D ratioL/D22-25Extruding capacityKg/Hr100-130Accumulator capacityL/Clamping forceKN158Mold opening

Model	unit	J12L
Max. Container capacity	L/Cavity	12/1 7/2
Output (dry cycle)	PCS/Hr	700
Screw diameter	MM	Φ80（main）+Φ40(second layer)+Φ30(visual line)
Screw L/D ratio	L/D	22-25
Extruding capacity	Kg/Hr	100-130
Accumulator capacity	L	/
Clamping force	KN	158
Mold opening stroke	MM	300-660
Platen size (W x H)	MM	450 x 500
Max. Mold size(W x H)	MM	610 x 500
Die head heating power	KW	2.6
Extruder heating power	KW	7+3+2.5
Screw motor power	KW	30+7.5+4
Oil pump motor power	KW	11
Air consumption	M³/Min	1
Water consumption	L/Min	100
Machine dimension(LxWxH)	M	4 x 3.2 x 2.6
Machine weight	Ton	12.2
