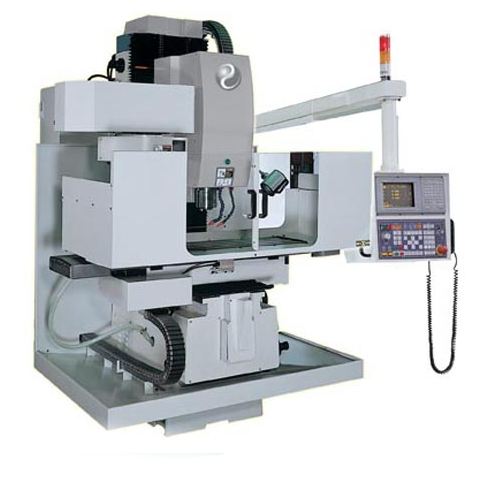

Máy phay CNC CNC-24MA

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Máy phay CNC CNC-24MAMODELUNITCNC-24MACNC-36MB CNC-46MBTravelX/Y/Z axismm750/400/5301000/500/5701300/500/570Spindle nose to table surfacemm100-67090-660Spindle center to column surfacemm470540X/Y/Z way spanmm286 / 390 / 420306 / 620 / 470Position

Máy phay CNC CNC-24MA

	MODEL	UNIT	CNC-24MA	CNC-36MB	CNC-46MB
Travel	X/Y/Z axis	mm	750/400/530	1000/500/570	1300/500/570
	Spindle nose to table surface	mm	100-670	90-660
	Spindle center to column surface	mm	470	540
	X/Y/Z way span	mm	286 / 390 / 420	306 / 620 / 470
	Position/Repeatability accuracy	mm	±0.005
	Ball bar accuracy	mm	≦0.01
Spindle	Spindle taper		BT-40
	Spindle transmission		Belt
	Spindle speed	rpm	8000 / (OP10000)
Controller	CNC control		As customer’s choice
	Spindle motor	kw	5.5/7.5
	X/Y/Z motor	kw	1.0/1.0/1.0	1.3/1.3/1.3
Table	Table size (WxL)	mm	320 x 1270	400 x 1270	400 x 1500
	T-slots(Widthx No.xPitch)	mm	16 x 4 x 63	16 x 5 x 63
	Table load	kg	500	700
Feed	X/Y/Z Rapid feed rate	m/min	7/7/7
	Cutting feed rate	m/min	1-4000
	Min. input increment	mm	0.01
Magazine	Max. tool dia./with adjacent tool	mm	φ 100
	Max. tool weight	kg	7
	Max. tool length	mm	250
	Tool selection		Carousel type (OP:Automatic random Arm type)
	Tool Capacity		16 (OP:24)
	Pull stud	degree	45°
	Tool Changing time (T. to T.)	sec	2.5-3.4 (arm type)
Others	Spindle oil cooler	l	5
	Lubrication capacity	l	2
	Heat exchanger	watt	40 x 2
	Coolant tank	l	40	90
	Pneumatic unit	kg/cm2	6
	Power	kva	10	13
Weight & Dimension	N.W./G.W.(approximate)	kg	2500/2700	3700/3900	3900/4100
	Floor space(L x W x H)	m	3.24 x 3.22 x 2.68	4.29 x 3.25 x 2.73	7.27 x 4.09 x 2.99
	Packing(L x W x H)	m	2.28 x 2.69 x 2.55	2.28 x 3.35 x 2.55	2.28 x 3.87 x 2.55
