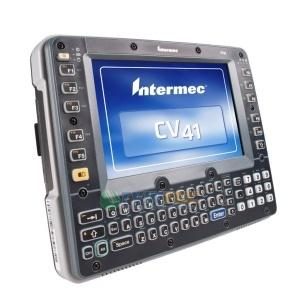

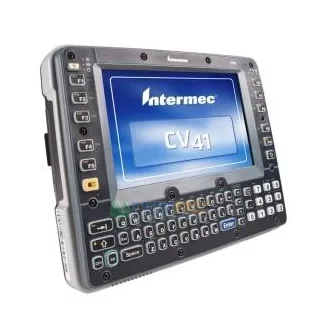

Máy kiểm kho, máy tính di động CV41

Data Collection Scanner Support

• Tethered serial scanner (+5V powered)
• TetheredUSB bar code scanner
• Tethered RFID reader
• Bluetooth

Display

20 cm (8") WVGA 800x480 LED backlit display

Standard: 400 NIT indoor display
• Light sensor for automatic brightness adjustment
• Field-replaceable resistive touch screen,
glove compatible

Optional: 900 NIT outdoor display
• Touch screen defroster
• Screen blanking

Keypad: Backlit 64 key Qwerty keyboard with number pad, Universal keyboard overlay legend supports VT220, 3270, 5250, All keys (except modifiers) mappable

Environment

Operating Temperature: -30° to +50°C (-22° to 122°F)
Storage Temperature: -30° to +60°C (-22° to +140°F)
Rain and Dust Resistance: IP66
Vibration and Shock Protection: Withstands standard material handling vehicle environments. Meets or exceeds MIL STD 810F, composite wheeled vehicles.
Electrostatic Discharge: +/- 15 kV air discharge, +/- 8 kV direct discharge

Memory and Storage

1GB SDRAM
Memory/Storage Extensions: Mass Storage: 1 GB Flash User installable expansion slot supports additional 1 GB or 4 GB SD card

Microprocessor

Intel® Atom Z530 1.6GHz

Operating System

Microsoft Windows® CE 6.0

Physical Characteristics

Height: 21.4 cm (8.4 in)
Width: 26.8 cm (10.6 in)
Depth: 4.3/6.6 cm (1.7/2.6 in)
Weight: 2.1 kg (5.6 lb)

Power

Integrated 10-60 VDC isolated power supply
Optional external power converters:
• AC input for 90-240 VAC
• Extended range DC input for 60-150 VDC
Integrated Uninterruptible Power Supply (UPS)
• Field-replaceable, rechargeable Lithium-Ion,
30 minutes life at -20° C

Interfaces

1 USB 2.0 Host Port, 1 USB 1.1 Client Port, 2 RS-232 COM ports, 1 CAN-bus port, 1 Headset port, DC power input & ignition input, RF Antennae ports for WiFi (2), WWAN (1) & GPS (1)

Software

Device Management: Intermec SmartSystems™ support includes ScanNGo provisioning for use alone or with device management software from Intermec ISVs
Device Health Monitoring: Onboard diagnostics application; Remote access capability (requires SmartSystem Management option)
Application Development: Intermec Developer Library www.intermec.com/dev
Host Connectivity: Factory loaded Intermec Client Pack with Intermec Terminal Emulation (VT220/ANSI, 5250, 3270) and Intermec Lock-Down Industrial Browser
