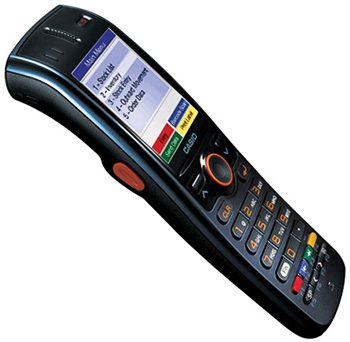

Máy kiểm kho Casio DT-X7

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

CPUPXA270 416MHzOperating systemMicrosoft® Windows® CE 5.0 (English version)MemoryRAM64 MBF-ROM64 MB (approx. 29 MB available)Scanner/CMOS imagerType 1Laser scanner incl. auto focusResolution0,127 mmScan range40-400 mmReadable codesUPC-A, UPC-E, EAN8

CPU	PXA270 416MHz
Operating system	Microsoft® Windows® CE 5.0 (English version)
Memory
RAM	64 MB
F-ROM	64 MB (approx. 29 MB available)
Scanner/CMOS imager
Type 1	Laser scanner incl. auto focus
Resolution	0,127 mm
Scan range	40-400 mm
Readable codes	UPC-A, UPC-E, EAN8 (JAN8), EAN13 (JAN13), Codabar (NW-7), Code39, Interleaved 2 of 5 (ITF), MSI, Industrial2 of 5, Code93, Code128 (EAN128), IATA, RSS-14, RSSLimited, RSS Expanded, RSS-14 Stacked, RSS Expanded Stacked
Type 2	CMOS imager
Resolution	0.127 or higher
Scan range	60-300 mm
Readable codes	PDF417, Micro PDF, CODE49, Composite, Codablock F, TLC39, RSS Expanded Stacked, RSS-14 Stacked, Aztec, DataMatrix, Maxicode, QR Code, Code 32
Display
CASIO-Super-LCD	Transflective TFT colour LCD display
Size/pixels	6,1 cm (2,4"), resolution: 240x320 QVGA, 65,536 colours
Background illumination	LED technology
Input
Keyboard	29 keys, 3 scanner keys (left, right, middle), colour F1-F4 keys
Communication
Interfaces	Bluetooth® Ver.2.0 (Class2), IrDA Ver.1.3 Low Power (max. 4 Mbps)
Wireless LAN
DT-X7M10R/DT-X7M30R	IEEE802.11b (max. 11 Mbps), IEEE802.11g (max. 54 Mbps)
Power supply - Type - Operating life
DT-X7M10E	Lithium-ion battery: Standard (1100 mAh): approx. 15 hours Large (1880 mAh): approx. 26 hours (Standby:Input:Scan 20:1:1)
DT-X7M30E	Lithium-ion battery: Standard (1100 mAh): approx. 13.5 hours Large (1880 mAh): approx. 23 hours (Standby:Input:Scan 20:1:1)
DT-X7M10R	Lithium-ion battery: Standard (1100 mAh): approx. 10 hours Large (1880 mAh): approx. 17 hours (Standby:Input:Scan:WLAN 20:1:1:1)
DT-X7M30R	Lithium-ion battery: Standard (1100 mAh): approx. 9 hours Large (1880 mAh): approx. 15 hours (Standby:Input:Scan:WLAN 20:1:1:1)
Back-up battery	Lithium battery
Other
Audio	Loudspeaker (mono), microphone (mono)
Buzzer	Yes
Vibration	Comes standard
Dimensions (LxWxH)	approx. 166 (length) x 51/52* (width) x 30.5/23.5* (height) mm * Handle exterior ** Display exterior
Weight	DT-X7M10: Approx. 145 g (with standard battery) DT-X7M30: Approx. 149 g (with standard battery)
Protection
Fall protection	1.0 m (without bumper) 1.5 m (with bumper)
Water and dust protection	IP54
Operating temperature	DT-X7M10: -10 to +50 °C DT-X7M30: -20 to +50 °C
