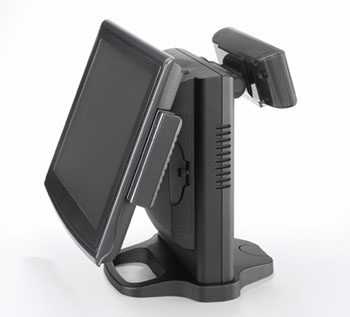

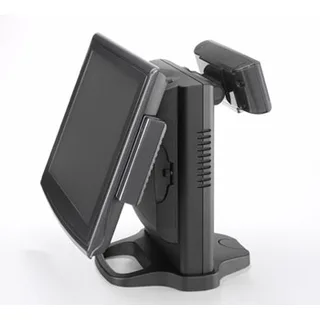

Máy bán hàng pos Vouge Pro RP-3212B

Model

RP-3212B

RP-3215B

Processor

Intel® Celeron® 440, 512K L2 Cache, 2.0Ghz, 800Mhz FSB (HH80557RG041512)
Intel® Pentium® E5300, 2M L2 Cache, 2.6Ghz, 800Mhz FSB (AT80571PG0642ML)

System Memory

1 GB Standard, Maximum 4 GB (2 x 240-pin DDR2)

Power Supply

250W External Power Supply with 12V/24V Output

Storage Device

Supports 2 x 2.5 SATA HDD with RAID Function (0,1,10), 2nd SATA HDD (Optional)

Speaker

Internal Speaker 2W x 2

Construction

Aluminum Die-casting, Plexi-Glass Acrylic (Front Bezel)

Housing Color

Black

Touch LCD Display

Size / Resolution

12.1" TFT LCD / 800 x 600

15" TFT LCD / 1024 x 768

Brightness
(Backlight Type)

400 cd/m² (CCFL)

250 / 350 cd/m² (CCFL)

Touch Screen

5-Wire Resistive Touch

I/O Ports

Serial Port

3 x Internal : COM3 (Touch), COM4 (VFD / LCM or 2nd Touch), COM6 (Reserved)

3 x External : COM1 & COM2 (DB9), COM5 (RJ45)

USB Port

3 x Internal (1 WiFi, 1 MSR / 3-in-1, 1 Reserved), 5 x External (1 Side, 4 Bottom)

Printer Port

1 x Bi-directional Parallel Port

Cash Drawer Port

1 x RJ11 (12V)

Keyboard

1 x PS2

LAN Port

1 x RJ45 Giga LAN

Video Port

1 x VGA (DB15)

Audio Port

1 x Line-out

OS Supported

Windows

Windows XP, Windows XPE, POSReady 2009, Windows 7

Linux

Per Request

Physical Dimensions

Dimensions (WxHxD)

325 x 430 x 255 mm

375 x 430 x 255 mm

Environment

EMI / Safety

CE, FCC Class A

Operating Temperature

0˚C ~ 40˚C (32˚F ~ 104˚F)

Storage Temperature

-10˚C ~ 55˚C (14˚F ~ 131˚F)

Relative Humidity

10% ~ 90% (Non-condensing)

Optional Peripherals

Magnetic Stripe Card Reader

Integrated MCR Module (Single / Dual / Triple Track Selectable)

2-in-1 / 3-in-1 Module

Integrated MCR + i-Button / MCR + RFID / MCR + Fingerprint / MCR + Smartcard + i-Button

2nd Display

Integrated 12.1” / 15” TFT LCD (Touch Screen Optional)

Customer Display

Integrated VFD / LCM Customer Pole-Display

Wireless LAN

Integrated 802.11 b/g/n Wireless Module
