Thông số kỹ thuật

Bảo hành	24 tháng

Đặc điểm nổi bật

- Màn hình: 15" 5Wire Touch LCD Terminal - Mainboard: MINI ITX Intel D410 Chipset - CPU: Intel ATOM 1.66 GHz - Bộ nhớ RAM: One DDR2 DIMM 240-pins socket, 1GB - Ổ cứng HDD: 2.5" 160 GB (W/O Operting System) - Độ phân giải màn hình 1024*768 -

- Màn hình: 15" 5Wire Touch LCD Terminal
- Mainboard: MINI ITX Intel D410 Chipset
- CPU: Intel ATOM 1.66 GHz
- Bộ nhớ RAM: One DDR2 DIMM 240-pins socket, 1GB
- Ổ cứng HDD: 2.5" 160 GB (W/O Operting System)
- Độ phân giải màn hình 1024*768
- Cổng giao tiếp: Serial port x3, Parallel port x 1, USB 2.0 x 4 , PS/2 Mini-DIN KB Port x 1
- RJ-45 Ethernet Port x 1, LTP X 1,Audio Line-in & out Port x 1 each
General Description

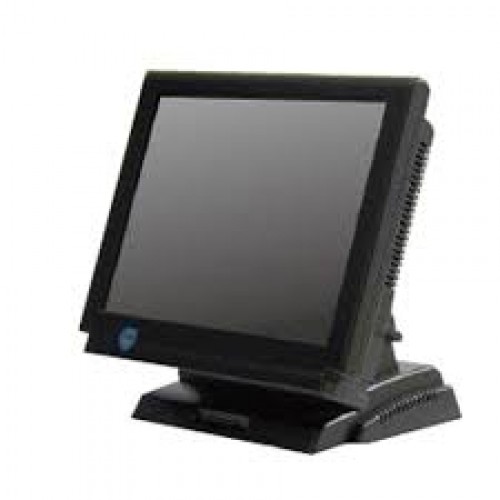

The RDT series is a multi-functional Touch system specifically for retail & hospitality application such as hotels, restaurants and shops.
Specification

Specification		RDT-150
Motherboard	CPU	Atom 1.6GHz (N230) CPU	Intel ATOM 1.66 GHz; ATOM Dual Core 1.66GHz E1500 Dual Core 2.2GHz
	System Freq.	533 MHz	533/800 MHz
	Chipset	Intel 945GC+ICH7	Intel 960GLE (965GME)+ICH8-M
	Memory	One 240PIN DDR2 DIMM socket 533/667 up to 2GB	One 200PIN DDR2 SO-DIMM socket 533/667 up to 4GB
	Video	Integrated Graphic Engine
	Ethernet	10/100Mbps Ethernet	10/100/1000Mbps Ethernet
	Audio	ALC 662 Audio Codec
Storage Device		2.5" IDE/SATA HDD x 1	2.5” or 3.5" IDE/SATA HDD x 1 Compact Flash II Socket x 1
I/O Connector		Serial Port x 1 External + 2 (optional)	Serial Port x 4 External + 2 Internal
		Parallel Port x 1
		USB 2.0 Port x 4 External + 4 Internal
		PS/2 Mini-DIN Keyboard Port x 1 & Mouse Port x 1
		Audio Line-out Port x & Mic-in Port x 1
		RJ-45 Ethernet Port x 1
			RJ-12 Cash Drawer Port x 2
			VGA Port x 1 (for second screen)
Expansion Slot		PCI Slot x 1	Mini PCI Slot x 1
Monitor		15" XGA TFT LCD
Touch Screen		5-wire Resistive Touch Panel (Optional: SAW, Capacitive, and IR touch panel)
Power Supply		External power adapter inside the stand
Dimension (mm)		380(W)x217(D)x311(H)
Optional Integrated Device		VFD Customer Display, MSR Card Reader, Fingerprint Scanner, 3-in-1 Hybrid Card Reader, Second LCD Screen with or without Touch Screen
