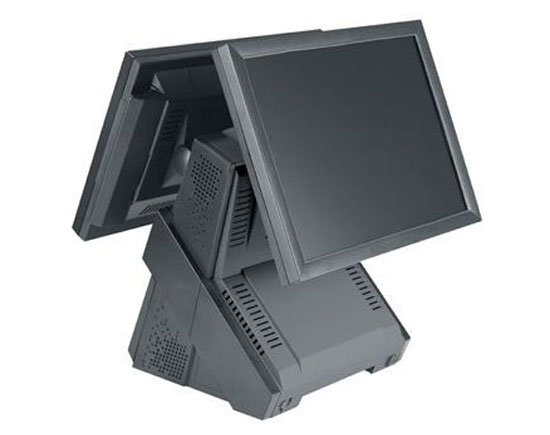

Máy bán hàng Pos Partner Tec PT-8800

CPU

Intel® Celeron-2.5GHz or PIV-2.8GHz

Memory

Support Two DDR DIMM 512MB (up   to 2GB)

BIOS

Award PnP   BIOS

Operator LCD Monitor

15" TFT Color Display, 0~60   tilt angle

Touch Panel

5-Wire Resistive Touch (optional capacitive)

Viewing Angle

0 to 60   tilt

H.D.D. & Storage

One 3.5" IDE Hard Drive

Compact Flash Card Socket, IDE   interface.

Ethernet

10/100/1000Mbps Ethernet onboard

I/O Interface

-4*D-sub 9 pin Serial ports   provide DC+5V or DC+12V with jumper free BIOS setting on rear I/O   panel, 2 serial ports pin-headers onboard (1 reserved for touch, 1 for   customer display)

- 1 * LPT port onboard

- 2 * 3W speaker

- 1 * PS/2 Mouse port

- 1 * PS/2 KB port

- 4 * USB 2.0 ports (2*powered USB (DC+12V and DC+24V)   on rear I/O panel, 2*USB on front)

- 1 * DB-15 VGA port

- 1 * RJ11 Cash Drawer port with DC+24V

- 2 * Audio ports(1*Line-out, 1*Mic-in, both in the rear   panel)

- 1 * RJ-45 LAN port

Operation System

DOS, WIN 2000/XP Pro/XPe, Linux, CE.NET

Power Supply

Internal 220W Switching Power Supply

Environment

Operating   Temperature: 0~40 degree C

Storage Temperature: -20~60 degree C

Dimension

Physical: 344mm (W) x348mm (D) x 375mm (H) w/o MSR

Options

- Magnetic   Stripe Reader (dual or three tracks)

-   Biometric Reader

- I-Button

-KB32 32-Key keypad

-Integrated 2x20 VFD Rear Customer Display

-Secondary 15"LCD Screen
