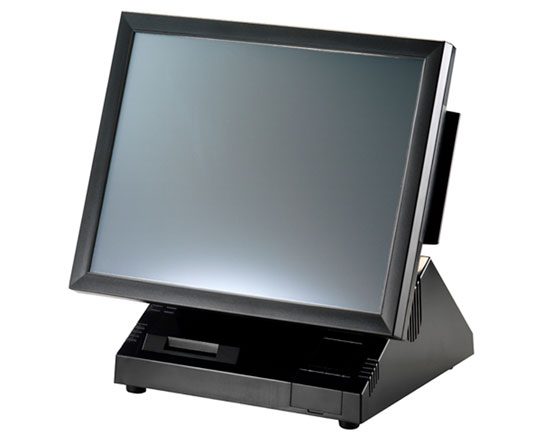

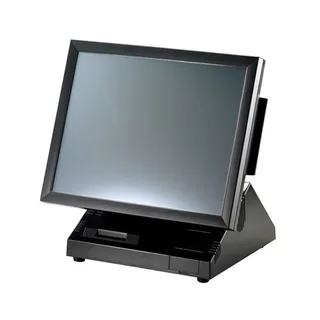

Máy bán hàng Pos Partner Tec PT-6910 series

Item

PT-6910-100

PT-6910-152

PT-6910-152F

CPU Type

Intel   Celeron-M 1.0GHz,
    FSB 400MHz, Fanless

Intel Celeron-M   1.5GHz,
    FSB 400MHz, Fanless

Intel   Celeron-M 1.5GHz,
    FSB 400MHz, W/Fan

LCD

15¡¨ Active TFT color LCD,   resolution 1024 x 768

Touch

5-wire Resistive touch (RS-232   interface)

Memory

1G

Ethernet

10/100M/1G

Storage

Internal 3.5¡¨ type SATA HDD 80GB   or USSD

I/O Interface

6 * COM ports (COM1~4 at back I/O,   COM5~6 on M/B) (COM3/4 provides DC +5V/12V with BIOS setting)

1 * DB-15 VGA port

1 * DB-25 for LPT port

1 * RJ11 port for 2 cash   drawer(+24V)

1 * PS2 Keyboard port

1 * PS2 Mouse port

1 * RJ-45 LAN port with activity   and link LEDs

2 * Audio ports (1 * Line-out , 1 *   MIC-in)

6 * USB 2.0 (2 in the front; 2 in   the back; 2 on the M/B)

1 * DC +19V yellow power adaptor   connector

Expansion Options

Compact Flash card socket, IDE   interface

1 * Mini PCI socket

Optional Peripherals

3 tracks magnetic reader

Customer display module (2 x 20   VFD)

802.11 b/g Mini PCI Module support   WiFi function

Biometric Reader, Smart Card   Reader, I-Button, RFID reader

KB-32 32-keys keypad

2nd monitor(Dual screen)

Operation System

Windows XP, XP embedded, CE.Net,   Linux (Fedora, Red Hat) , WEPOS, POSReady

Power Supply

AC100~240V/DC19V, 4.75A, 90 watt   power adaptor (3P), 24V-tolerant

Dimensions

Physical:344(W)x259(D)x331(H)mm

Operating Temperature

0~+40˚C

Storage Temperature

-20˚C~+60˚C

Operating & Storage Humidity

10%~80%

Certification

CE/FCC Class A, UL, cUL, CB, VCCI,   BSMI, CCC
