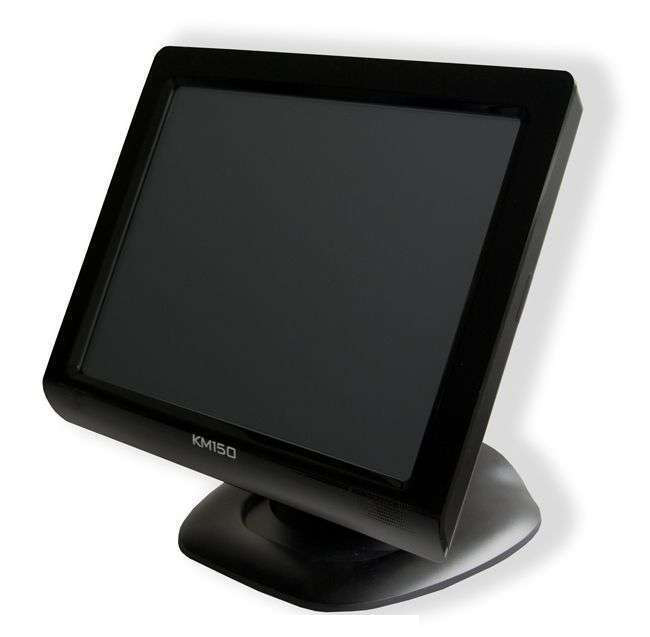

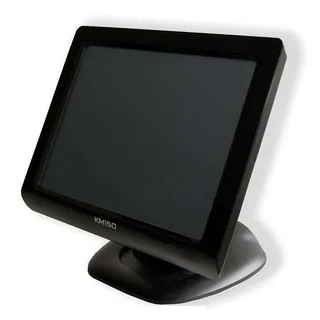

Máy bán hàng pos KM-150

Model

KM-150B

Processor

VIA Eden™ (ULV) Processor 1.0Ghz

System Memory

1 GB Standard, Maximum 1 GB (1 x 200-pin DDR2)

Power Supply

150W (12V/12.5A) External Power Adaptor

Storage Device

1 x 2.5" SATA HDD

1 x CF Card (Optional)

Construction

Aluminum Die-casting, Housing

Housing Color

Black

Touch LCD Display

Size / Resolution

15" TFT LCD / 1280 x 1024

Brightness

250 / 350 cd/m²

Touch Screen

5-Wire Resistive Touch

I/O Ports

Serial Port

3 x External : COM1, COM2, COM4 (RJ45)

USB Port

4 x External (2 in Front, 2 in Rear)

Cash Drawer Port

1 x 12V RJ11 (Single / Dual)

Keyboard

1 x PS/2

LAN Port

1 x RJ45 Giga LAN

Video Port

1 x RJ45 Giga LAN

Audio Port

1 x Line-out

DC Output

1 x 12V for 2nd Display

OS Supported

Windows

Windows XP, Windows XPE, POSReady 2009, Windows 7

Linux

Per Request

Physical Dimensions

Dimensions (WxHxD)

375 x 285 x 105 mm

Weight

Weight of Terminal

Net 9 kg, Gross 10kg

Environment

EMI / Safety

CE, FCC Class A

Operating Temperature

0˚C ~ 45˚C (32˚F ~ 104˚F)

Storage Temperature

-10˚C ~ 50˚C (14˚F ~ 122˚F)

Relative Humidity

10% ~ 90% (Non-condensing)

Optional Peripherals

Magnetic Stripe Card Reader

MCR Single/Dual/Triple Track

Wireless LAN

802.11 b/g/n Wireless LAN Module
