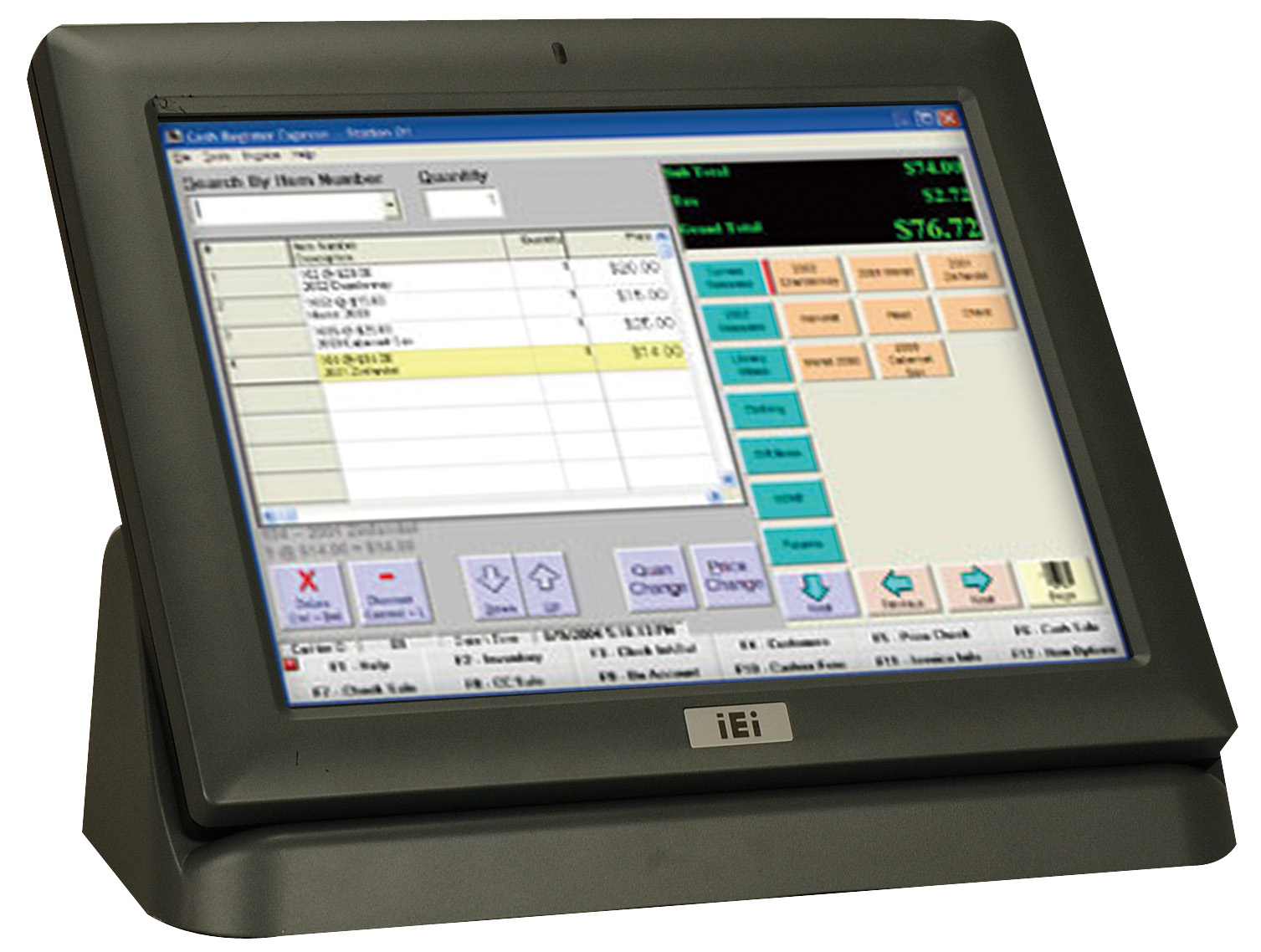

Máy bán hàng POS IEI AFL-12BS

LCD

12.1" TFT LCD

CPU

AMD Geode™ LX 800 (500MHz)

Chipset

AMD Geode™ LX 800+ AMD Geode™ CS5536

I/O Interface

Memory

Supports one 1GB (maximum)333MHz or 400MHz SO-DIMM

Max Resolution

800 x 600

Brightness (cd/m²)

350

Contrast Ratio

500:1

LCD Color

262K

Touch Screen Type

Resistive Type 5-Wire

Pixel Pitch (mm)

0.3075(H) x 0.3075(V)

Viewing Angle (H-V)

140(H) / 120(V)

Backlight MTBF

50000 hrs

Housing Material

ABS + PC Plastic front frame

IP Level

IP 64 in front

Front Panel Color

Gray

HDD

1 x 2.5" HDD bay With ANTI-SHOCK

SSD

CF Type II

Mini-PCI Slot

1x mini-PCI slot (for build-in wireless 802.11 b/g module)

Built-in Speaker

AMP 1.5W+AMP 1.5W

Power Adapter

Power: 48W
Input: 90VAC~264VAC @ 50/60Hz
Output:12VDC

Power Consumption

29W

MSR

Magnetic Card Reader (USB interface) (optional)

MSI

Magnetic Card, Smart Card,Dallas iButton (USB interface) (optional)

Cash Drawer

RJ-12 (12VDC) interface (optional)

Bar Code Reader

Hand-held Laser Scanner (USB interface) (optional)

EMC and Safety

CE,FCC,CCC,UL,CB

Operating Temperature

0°C~50°C

Storage Temperature

-20°C~60°C

Dimension (WxHxD) (mm)

304 x 246 x 49.5

Mounting

Panel, Wall, Stand VESA 75mm x 75mm / 100 x 100mm

Net Weight

1.8 Kg

OS Support

Windows XPE, Windows CE 5.0 or Windows CE 6.0 (optional)

Watchdog Timer

Software programmable supports 1~255 sec. System reset
