Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

ModelRT-662CRT-665CProcessorIntel® Atom™ N270, 512K L2 Cache, 1.6Ghz, 533Mhz FSBSystem Memory1GB Standard, Maximum 4 GB (2 x 200-pin DDR2)Power Supply90W (12V / 7.5A) External Power AdaptorStorage Device1 x 2.5" SATA HDD or 1 x 2.5" SSD (Optional) or

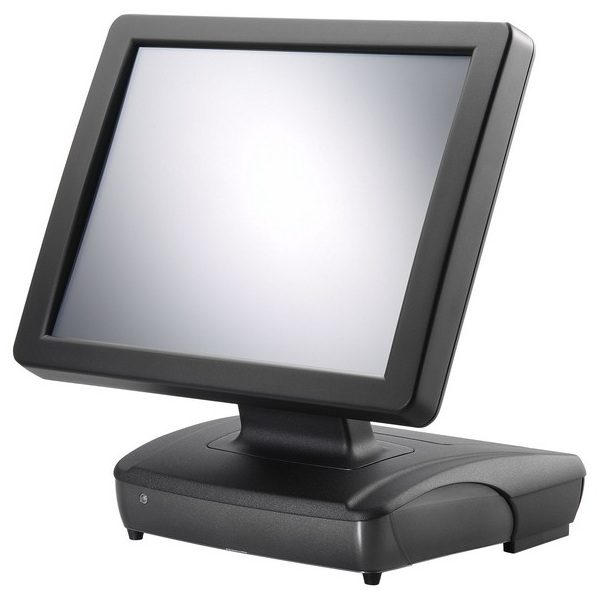

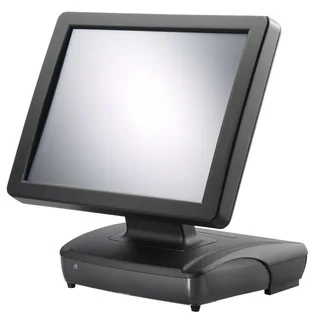

Model	RT-662C	RT-665C
Processor	Intel® Atom™ N270, 512K L2 Cache, 1.6Ghz, 533Mhz FSB
System Memory	1GB Standard, Maximum 4 GB (2 x 200-pin DDR2)
Power Supply	90W (12V / 7.5A) External Power Adaptor
Storage Device	1 x 2.5" SATA HDD or 1 x 2.5" SSD (Optional) or 1 x SATA DOM (Optional)
Graphics	---
Speaker	Built-in Speaker 2W x 2
Construction	Aluminum Die-casting
Housing Color	Black / Silver
Touch LCD Display
Size / Resolution	12" TFT LCD / 800 x 600	15" TFT LCD / 1024 x 768
Brightness	400 (CCFL) cd/m²	250 / 350 (CCFL) cd/m²
Touch Screen	5-Wire Resistive Touch

I/O Ports
Serial Port	5 x External : COM1, COM2, COM5, COM6 (DB9), COM4 (RJ45 with LED)
USB Port	4 x External
Printer Port	1 x Bi-directional Parallel port
Cash Drawer Port	1 x 12V RJ11 (Single / Dual)
LAN Port	1 x RJ45 Giga LAN
Keyboard / Mouse	---
Video Port	1 x VGA
Audio Port	1 x Line-out
DC Output	1 x 12V DC Jack 2.5 mm

OS Supported
Windows	Windows XP, Windows XPE, POSReady 2009, Windows 7
Linux	Per Request

Physical Dimensions
Dimensions (WxHxD)	320 x 345 x 271 mm	370 x 389 x 271 mm

Environment
EMI / Safety	CE, FCC Class A
Operating Temperature	0˚C ~ 40˚C (32˚F ~ 104˚F)
Storage Temperature	-10˚C ~ 50˚C (14˚F ~ 122˚F)
Relative Humidity	10% ~ 90% (Non-condensing)

Optional Peripherals
Magnetic Stripe Card Reader	MCR Single/Dual/Triple Track
2-in-1 / 3-in-1 Module	MCR + i-Button / MCR + RFID / MCR + Fingerprint / MCR + Smartcard + i-Button
2nd Display	12.1"/ 15" Pole-type LCD Display (Touch Screen Optional)
Customer Display	VFD / LCM Pole-type Customer Display
