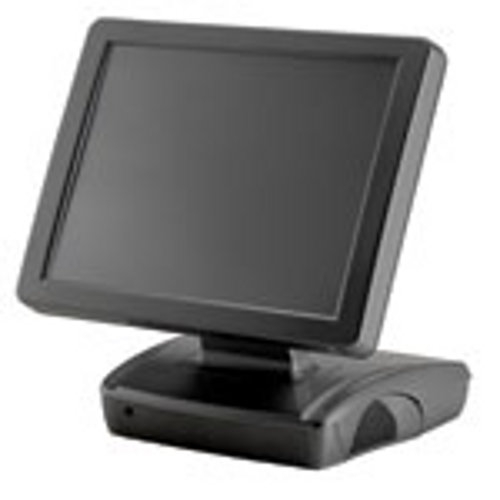

Máy bán hàng pos Glaive D RT-662D

Model

RT-662D

RT-665D

Processor

Intel® Atom™ D525 1M L2 Cache 1.8Ghz

System Memory

1 GB Standard, Maximum 4 GB (1 x 204-pin DDR3)

Power Supply

90W (12V / 7.5A) External Power Adaptor

Storage Device

1 x 2.5" SATA HDD

1 x 2.5" SATA HDD (Swappable)

Graphics

Intel® GMA 3150

Speaker

Internal Speaker 2W x 2

Construction

Aluminum Die-casting

Housing Color

Leather Black / Piano White

Touch LCD Display

Size / Resolution

12" TFT LCD / 800 x 600

15" TFT LCD / 1024 x 768

Brightness(Backlight Type)

330 cd/m² (LED)

250 (CCFL) / 450 cd/m² (LED)

Touch Screen

5-Wire Resistive Touch

I/O Ports

Serial Port

2 x Internal : COM3 (Touch), COM6 (Reserved)

4 x External : COM2 (DB9) COM1, COM4, COM5 (RJ45)

USB Port

5 x Internal, 4 x External

Printer Port

1 x Bi-directional Parallel port

Cash Drawer Port

1 x RJ11(12V)

LAN Port

1 x RJ45 Giga LAN

PCI Slot

1 x Mini PCI-e(Internal)

Keyboard / Mouse

1 x PS/2 Port

Video Port

1 x VGA

Audio Port

1 x Line-out, 1 x Mic-in

DC Output

1 x 12V DC Jack 2.5 mm

OS Supported

Windows

Windows XP, Windows XPE, POSReady 2009, Windows 7

Linux

Per Request

Physical Dimensions

Dimensions (WxHxD)

320 x 345 x 271 mm

370 x 389 x 271 mm

Environment

EMI / Safety

CE, FCC Class A

Operating Temperature

0˚C ~ 40˚C (32˚F ~ 104˚F)

Storage Temperature

-10˚C ~ 55˚C (14˚F ~ 131˚F)

Relative Humidity

10% ~ 90% (Non-condensing)

Optional Peripherals

Magnetic Stripe Card Reader

Integrated MCR Module (Single / Dual / Triple Track Selectable)

2-in-1 / 3-in-1 Module

Integrated MCR + i-Button / MCR + RFID / MCR + Fingerprint / MCR + Smartcard + i-Button

2nd Display

Integrated 12.1"/ 15" Pole-type LCD Display (Touch Screen Optional)

Customer Display

VFD / LCM Pole-type Customer Display

Wireless LAN

Integrated 802.11 b/g/n Wireless Module

2nd Storage

SATA DOM
