Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

ModelAL-7435ProcessorIntel® Atom™ D525, 1M L2 Cache, 1.8GhSystem Memory1GB Standard, Maximum 4GB (1x204-pin DDR3)Power Supply150W (12V / 12.5A) External Power Supply Integrated with Base (Optional 90W for Wall-mount)Storage Device1 x 2.5" SATA

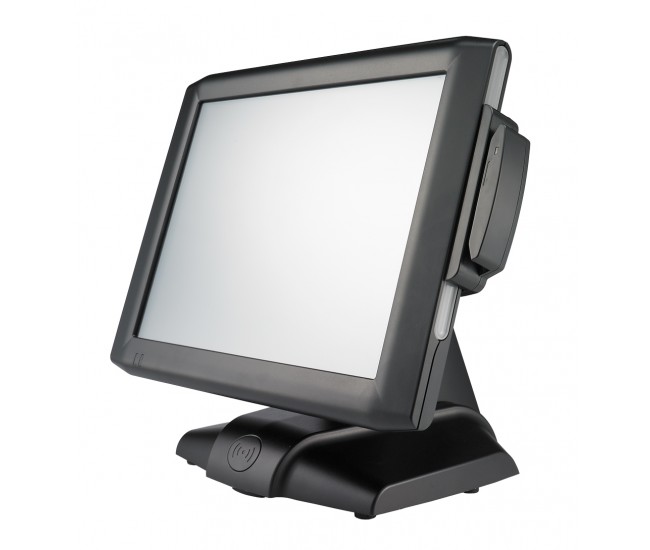

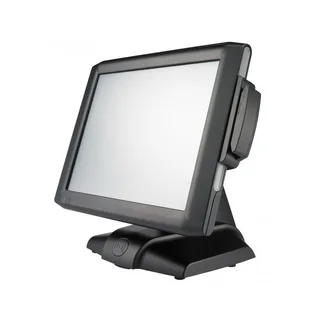

Model	AL-7435
Processor	Intel® Atom™ D525, 1M L2 Cache, 1.8Gh
System Memory	1GB Standard, Maximum 4GB (1x204-pin DDR3)
Power Supply	150W (12V / 12.5A) External Power Supply Integrated with Base (Optional 90W for Wall-mount)
Storage Device	1 x 2.5" SATA HDD
Graphics	Intel® GMA 3150
Speaker	Internal Speaker 2W x 2
Construction	Aluminum Die-casting + SECC
Housing Color	Black
Touch LCD Display
Size / Resolution	15" TFT-LCD/ 1024 X 768
Brightness (Backlight Type)	250 (CCFL) / 450 cd/m² (LED)
Touch Screen	5-Wire Resistive Touch / Capacitive Touch Optional
Panel OSD Control	Power On / Off, Brightness Up / Down
I/O Ports
Serial Port	3 x Internal: COM6 (LCM), COM3, COM5 (Reserved)
Serial Port	3 x External: COM1, COM2 (DB9), COM4 (RJ-45)
USB Port	4 x Internal (1 Touch, 1 Card Reader Module, 2 Reserved), 5 x External (4 Rear + 1 Side)
Cash Drawer Port	1 x RJ11 (12V)
Printer Port	1 x Bi-directional Parallel port
Keyboard / Mouse	1 x PS/2
LAN Port	1 x RJ45 Giga LAN
PCI Slot	1 x Mini PCI-e (Internal)
Audio Port	1 x Line Out
VGA Port	1 x VGA
DC Output	1 x 12V DC Jack 2.5 mm
Second I/O Board
Type A	Serial Port: COM5 & COM3 (RJ45) with RI / 5V / 12V Selectable; DC Output: 1 x 24V; 1 x Mic In
Type B (Special Requirements)	Serial Port: COM5 & COM3 (RJ45) RI / 5V / 12V Selectable; Powered USB Port: 1 x 24V; 1 x Mic In
Type C	Serial Port: COM5 & COM3 (RJ45) RI / 5V / 12V Selectable; Powered USB Port: 1 x 12V; 1 x Mic In
Type D (Special Requirements)	Powered USB Port: 1 x 12V & 1 x 24V; 1 x Mic In
Type E (Special Requirements)	Cash Drawer Port: 2 x 24V ; 1 x Mic In
OS Supported
Windows	Windows XP, Windows XPE, POSReady 2009, Windows 7
Linux	Per Request
Physical Dimensions
Dimensions (W x H x D)	382 x 294 x 359 mm
Environment
EMI / Safety	CE/FCC Class A
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	-10°C ~ 55°C (14°F ~ 131°F)
Optional Peripherals
MCR 3-in-1	Integrated MCR / Smartcard / Fingerprint or RFID 13.56 MHz
2nd Display	Integrated 12.1" / 15" Pole-type LCD Display (Touch Screen Optional)
Customer Display	Integrated LCM Customer Display / Pole Type VFD Display
Wireless LAN	Integrated 802.11 b/g/n Wireless Module
Base Integrated Devices	RFID 13.56 MHz / Fingerprint Reader / i-Button
