Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

ModelAP-3435ProcessorIntel® Atom™ D525, 1M L2 Cache 1.8GhzSystem Memory1GB Standard, Maximum 4GB (1x204-pin DDR3)Power Supply90W (12V / 12.5A) External Power SupplyStorage Device1 x 2.5" SATA HDDGraphicsIntel® GMA 3150SpeakerInternal Speaker 2W x

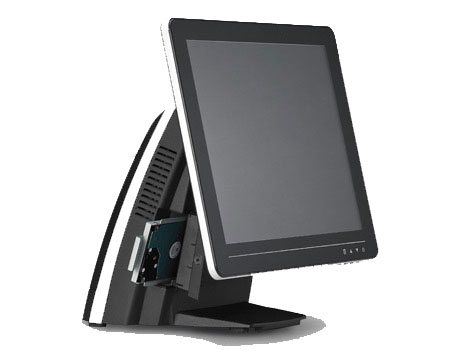

Model	AP-3435
Processor	Intel® Atom™ D525, 1M L2 Cache 1.8Ghz
System Memory	1GB Standard, Maximum 4GB (1x204-pin DDR3)
Power Supply	90W (12V / 12.5A) External Power Supply
Storage Device	1 x 2.5" SATA HDD
Graphics	Intel® GMA 3150
Speaker	Internal Speaker 2W x 2
Construction	Aluminum Die-casting + Plastic + Glass
Housing Color	Black with Silver Trim
Touch LCD Display
Size / Resolution	15" TFT-LCD/ 1024 X 768
Brightness (Backlight Type)	250 cd/m²(CCFL) with Tempered Glass / 350 cd/m²(LED)
Touch Screen	5-Wire Resistive Touch / Projected Capacitive Touch

I/O Ports
Serial Port	3 x External: COM1, COM2 (DB9), COM4 (RJ-45) USB Port
USB Port	5 x External (4 Rear + 1 Side)
Cash Drawer Port	1 x RJ11 (12V)
Printer Port	1 x Bi-directional Parallel port
Keyboard / Mouse	1 x PS/2
LAN Port	1 x RJ45 Giga LAN
PCI Slot	1 x Mini PCI-e (Internal)
Audio Port	1 x Line Out
VGA Port 1 x VGA	1 x VGA
DC Output	1 x 12V DC Jack 2.5 mm

OS Supported
Windows	Windows XP, Windows XPE, POSReady 2009, Windows 7
Linux	Per Request

Physical Dimensions
Dimensions (WxHxD)	367 x 294 x 223 mm

Environment
EMI / Safety	CE, FCC Class A
Operating Temperature	0˚C ~ 40˚C (32˚F ~ 104˚F)
Storage Temperature	-10˚C ~ 55˚C (14˚F ~ 131˚F)
Relative Humidity	10% ~ 90% (Non-condensing)

Optional Peripherals
Magnetic Stripe Card Reader	Integrated MCR Module (Single / Dual / Triple Track Selectable) 2nd Display
2nd Display	Integrated 15" Pole-type LCD Display (Touch Screen Optional)
Customer Display	Integrated LCM Customer Display / Pole Type VFD Display Wireless LAN
Wireless LAN	Integrated 802.11 b/g/n Wireless Module
Identification Devices	RFID 13.56 MHz / Fingerprint Reader / i-Button
