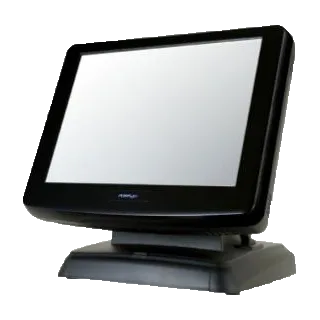

Màn hình POS tính tiền KS 7215

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Posiflex tung ra máy bán hàng KS-7215 là một thiết bị đầu cuối POS sáng tạo tiên tiến. - KS-7215 giới thiệu các tính năng sáng tạo cho các nhà bán lẻ lo ngại về độ bảm đảm an toàn dữ liệu. + Màn hình cảm ứng: màn hình LCD 17 "1280 x 1024 (KS-7217)

Posiflex tung ra máy bán hàng KS-7215 là một thiết bị đầu cuối POS sáng tạo tiên tiến.
- KS-7215 giới thiệu các tính năng sáng tạo cho các nhà bán lẻ lo ngại về độ bảm đảm an toàn dữ liệu.

+ Màn hình cảm ứng: màn hình LCD 17 "1280 x 1024 (KS-7217) hoặc 15" LCD 1024 x 768 (KS-7215)
+Thiết kế chống thấm (IP44) có khả năng ngăn nước bị tràn do bất cẩn và làm sạch dễ dàng, phạm vi ứng dụng rộng.
+Được trang bị CPU Intel Pine Dual Core D525 1.8 GHz và bộ nhớ DDR3
+Thiết kế chống bụi
+Hỗ trợ RAID 1 để sao lưu dữ liệu quan trọng (Tùy chọn)
+UPS (phát triển bởi Posiflex) hỗ trợ để tránh mất điện đột ngột (Tùy chọn)
+"Gear Lock" để điều chỉnh góc nghiêng màn hình LCD từ 15 ° đến 70 °
+Đẩy mở nắp để bảo vệ chuyển đổi nguồn khi bị tắt máy ngẫu nhiên
+Thân thiện với người sử dụng dễ nâng cấp hệ thống và bảo trì dễ dàng
phía trước bezel màu Shinny kim cương đen, đỏ hoặc trắng cho cái nhìn tuyệt đẹp (Tùy chọn cho KS-7215)
+Thế hệ 6 siêu mỏng (Tùy chọn)

Specification	KS-7217	KS-7215
Processor	Intel Pine View D525 1.8 GHz / 1 M Cache CPU (Dual Core)
System Memory	DDR3 800 MHz, SO-DIMM socket x 1, max 4 GB, default 1 GB
Storage Device	2.5” SATA HDD or SSD Kit (Optional) or CF Kit (Optional)
Power Supply	12V DC power adaptor, 80W	12V DC power adaptor, 60W (Optional 80W when equipping with 2nd LCD LM-8015B)
Audio	Built-in 2W speaker
OS support	Windows XP Pro / WEPOS / POSReady / Win 7 / Linux
Color	BlackI
Display
LCD	17” TFT LCD, 1280x1024 resolution	15” TFT LCD, 1024x768 resolution
Touch Function	Resistive, 5-wire, USB Interface / IR touch, USB Interface (Optional)	Resistive, 5-wire, USB Interface / IR touch, USB Interface (Optional)
Brightness Control	By digital push botton
Tilt Adjustment	From 15° to 70°
Connectivity
LAN Port	10 / 100 / 1000 Mb
Parallel Port	Optional
Serial Port	DB9 x2, RJ-45x2 (Optional RJ-45 to DB9 cable), with 5V/12V support on COM1/COM2/COM3/COM4
UPS Port	Yes,Battery (Optional)
Standard USB Port	6
Proprietary USB Port	1 for side mount optional
VGA Port	D-SUB 15 Pin, with 12V power for Posiflex LCD Monitor
CR Port	1, Control 2 CR
Physical Dimension
Dimension (W x D x H in mm)	410 X 379 X 299 (KS-7217) 378 X 304 X 364 (KS-7215)
Weight (N. W. in kg)	7.7
Environment
Operation Condition	0°C - 40°C, 20%RH - 90%RH
Storage Condition	(-20°C) - 70°C, 10%RH - 90%RH
Options
PD-306 / PD-306U	N/A	2 x 20 LCD, default 200 mm pole
PD-309 / PD-309U	2 x 20 LCD, default 200 mm pole
PD-310 / PD-310U	2x20 LCD, rear top mount
PD-2602 / PD-2602U	N/A	2 x 20 VFD, default 200mm pole
PD-2604 / PD-2604U	2x20 VFD, rear top mount
PD-2605 / PD-2605U	2x20 VFD, default 200mm pole
PD-76X2	N/A	240 x 64 dot graphics LCD, 200 mm pole
PD-76X4	240x64 dot Graphics LCD, 200mm pole
SSD	8 GB minimum
CF Card	Type I card
MSR	See Security Device
Security Device (SD)	SD-400/SD-400Z: 2 or 3 tracks MSR (JIS-II optional) and/or Finger Print Sensor SD-600: 2 or 3 tracks MSR (JIS-II optional) and/or iButton SD-700: 2 or 3 tracks MSR (JIS-II optional) and/or Bar Code Card Reader SD-800: 2 or 3 tracks MSR (JIS-II optional) and/or RFID and/or WiFi
UPS Battery	2300mAh/12V
RAID Function	Support RAID 1 (Disk Mirroring)
2nd LCD Display	12” LM-6101B , 15” LM-6501B	12” LM-6101B , 15” LM-6501B/LM-8015B
2nd HDD	Yes
KP-300W	36 Key plus lock keypad and/ or MSR and/or Smart Card Reader
