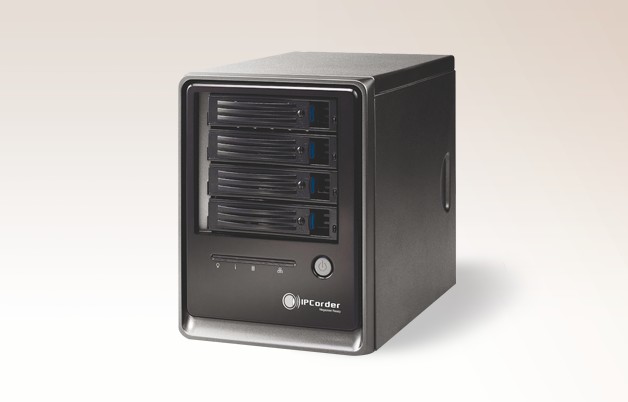

Đầu ghi hình Camera IP KOUKAAM KNR-410

Đầu ghi hình Camera IP KOUKAAM KNR-410

-        Tương thích với camera có độ phân giải Megapixel (5 Megapixel)

-        Sử dụng JAVA với giao diện dạng web server

-        Quản lý, giám sát và ghi hình đồng thời 24 camera.

-        Cho phép truy cập từ xa thông qua internet nhờ vào tính năng tự động mở port trên modem router.

-        Hỗ trợ 4 ổ cứng SATA 1TB và 2 cổng SATA bên ngoài.

Key Features

Standalone Linux based NVR

Powerful version, recommended for MPix cameras

Web based access using JAVA - Microsoft Windows (Internet Explorer, Mozilla Firefox etc.), Linux and Apple Mac OS (*) supported

Manage/Record/View up to 24 IP cameras/videoservers simultaneously

Open solution - support of various IP cameras from different manufacturers

Easy setup of the unit and connected devices (many tasks done automatically)

Easy recordings search, playback and export

Easy remote access from the Internet - Fully automatic or Manual router setup

Trully Megapixel Ready - up to 5 megapixel cameras supported

Rule scripting language for programming custom scripts

Support of I/O devices, values also available for scripting

4× SATA I or II hard drive (not included) + 2× eSata interface

High stability, no viruses, no spyware

Compact size and quiet operation

Low power consumption - green and cost effective solution

Other Features

Up to 20 cameras in user defined view matrix

Unique digital zoom feature with digital pan/tilt

Search recordings by motion detection or digital input events with date-time interval

Value/event charts displayed during search

Display of numerical values from IPCorder, cameras and sensors

Schedules for recording and Rule limitation

DHCP/static network configuration

NTP client for time synchronization

UPnP Presentation for easy search for IPCorders in network

Power recovery function

Networking

Currently only connector marked as 1 is used (on the right side when looking from back)

Interface

2× USB (not used)

1× IEC 320 C14 power connector

Storage

4× SATA hard drive (SATA I or II, tested up to 2 TB capacity each)

2× eSATA interface

Storage capacity up to 8 TB

Available RAID levels: Single disk, RAID 0 (Disk Stripping), RAID 1 (Disk Mirroring), RAID 5, RAID 6, RAID 10 and JBOD (Linear Disk Volume)

Recording Modes

Continuos or Pre/Post Event (Motion Detection, DI change), both can be limited by Schedule

Remote Access

Router control - Off, Automatic, Static forwarding (FW 1.1.0 and higher)

Supported Cameras/Videoservers (FW 1.2.0)

Up to 24 cameras/videoservers

Other Supported Devices

Unlimited number of I/O

Poseidon 1250 (3× input, optional temperature or humidity sensor)

Supported Browsers (FW 1.3.x)

Java based viewing

Microsoft Windows: Microsoft Internet Explorer 7.0 and 8.0 (32-bit only) and higher, Mozilla Firefox 3.0 and higher

Linux 32/64bit: Mozilla Firefox 3.0 and higher

MacOS X: Safari 4 and higher

Dimensions and Weight

L240 × H115 × W210 mm

net weight 4,5 kg

Power

100 - 240V 50/60Hz

consumption approx. 50W (incl. HDD)

Operating Temperature

0 – 40 °C

10 – 90% RH

Approvals

CE, FCC, RoHS

Package Contents

IPCorder KNR-410

Power cable (Schuko type plug)

Network cable

Quick Installation Guide, License agreement

CD with Discover Utility and documentation

Sản xuất tại Đài Loan.

Bảo hành: 12 tháng.
