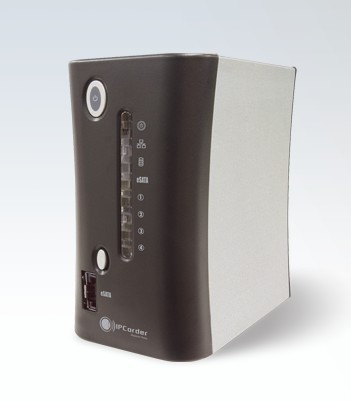

Đầu ghi hình Camera IP KOUKAAM KNR-100

Đầu ghi hình Camera IP KOUKAAM KNR-100

-        Tương thích với camera có độ phân giải Megapixel (5 Megapixel)

-        Sử dụng JAVA với giao diện dạng web server

-        Quản lý, giám sát và ghi hình đồng thời 24 camera.

-        Dễ dàng tìm kiếm dữ liệu để xem lại, báo cáo, . . .

-        Cho phép truy cập từ xa thông qua internet nhờ vào tính năng tự động mở port trên modem router.

-        Hỗ trợ 4 ổ cứng SATA 1TB và 2 cổng SATA bên ngoài.

Key Features

-        Standalone Linux based NVR

-        Web based access using JAVA - Microsoft Windows (Internet Explorer, Mozilla Firefox etc.), Linux and Apple Mac OS (*) supported

-        Manage/Record/View up to 8 IP cameras/videoservers simultaneously

-        Open solution - support of various IP cameras from different manufacturers

-        Easy setup of the unit and connected devices (many tasks done automatically)

-        Easy recordings search, playback and export

-        Easy remote access from the Internet - Fully automatic or Manual router setup

-        Trully Megapixel Ready - up to 5 megapixel cameras supported

-        Rule scripting language for programming custom scripts

-        Support of I/O devices, values also available for scripting

-        1× SATA I or II hard drive (not included)

-        High stability, no viruses, no spyware

-        Compact size and quiet operation

-        Low power consumption - green and cost effective solution

Other Features

-        Up to 20 cameras in user defined view matrix

-        Unique digital zoom feature with digital pan/tilt

-        Search recordings by motion detection or digital input events with date-time interval

-        Value/event charts displayed during search

-        Display of numerical values from IPCorder, cameras and sensors

-        Schedules for recording and Rule limitation

-        DHCP/static network configuration

-        NTP client for time synchronization

-        UPnP Presentation for easy search for IPCorders in network

-        Power recovery function

Networking

-        10/100/1000 Mbit/s

Interface

-        1× eSATA bus (not used)

-        2× USB (not used)

Storage

-        1× SATA hard drive (SATA I or II, up to 2TB capacity)

-        Storage capacity up to 2TB

Recording Modes

-        Continuos or Pre/Post Event (Motion Detection, DI change), both can be limited by Schedule

Remote Access

-        Router control - Off, Automatic, Static forwarding (FW 1.1.0 and higher)

Supported Cameras/Videoservers (FW 1.2.0)

-        Up to 8 cameras/videoservers

-        List of supported devices

Other Supported Devices

-        Unlimited number of I/O

-        Poseidon 1250 (3× input, optional temperature or humidity sensor)

Supported Browsers (FW 1.3.x)

-        Java based viewing

-        Microsoft Windows: Microsoft Internet Explorer 7.0 and 8.0 (32-bit only) and higher, Mozilla Firefox 3.0 and higher

-        Linux 32/64bit: Mozilla Firefox 3.0 and higher

-        MacOS X: Safari 4 and higher

Dimensions and Weight

-        L209 × H135 × W72 mm

-        net weight 960g

Power

-        12VDC

-        consumption max 20W (incl. HDD)

Operating Temperature

-        0 – 40 °C

Approvals

-        CE, FCC, RoHS

Package Contents

-        IPCorder KNR-100

-        Adaptor 100 - 240VAC 50/60Hz to 12VDC

-        Power cable (Schuko type plug)

-        Sản xuất tại Đài Loan.

-        Bảo hành: 12 tháng.
