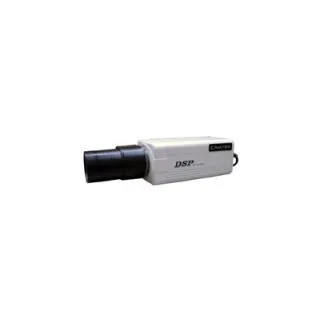

Camera Camtek CL-2009AC

Pick Up Element

1/3" Sony Super HAD CCD Sensor

D. S. P

Sony Digital Signal Processor

Picture Element

NTSC: 510(H) x 492(v) ; PAL: 500(H) x 582(V)

Horizontal Frequency

NTSC: 15.734 KHz. : PAL: 15.625 KHz.

Vertical Frequency

NTSC: 59.94 Hz. ; PAL: 50 Hz.

Synchronization

Internal

Scanning System

2 : 1 Interlace

Resolution

Horizontal 420 TV Lines

Low-light Sensitivity

0.05 Lux @F1.2

S/N Ratio

More than 48 dB (AGC OFF)

Gain Control

Auto Gain Control (AGC)

Electronic Shutter

Auto: 1/60 (50) sec. ~ 1/100,000 sec. ; Off: 1/60 (50) sec.

White Balance

AWB - Auto White Balance (2500°K ~ 9500°K)

Backlight Compensation

BLC On / Off Adjustable

Gamme Characteristic

r = 0.45

Auto Iris

Accept Video & D.C. Iris Lens

Video Output

1.0 Vp-p Composite Video Output ; 75 Ohm

Lens Mount

C/CS (with Ring Adapter)

Operating Temperature

- 10 ~ + 50 degree C / RH 85% or Less

Power Consumption

Max. 3.2 W

Power Supply

AC 24V or AC 230V

Dimension

60mm (W) x 50mm (H) x 125mm (D)

Weight

AC: 650 Grams

  Audio Output (Optional)

2.0 Vp-p / 50 Ohm ; RCA Connector (Optional)
