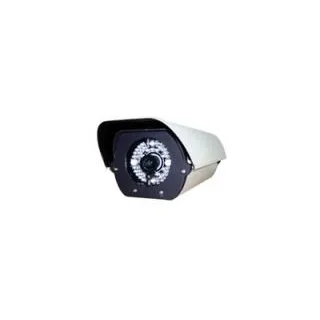

Camera Camtek CK-51CIR

Pick Up Device 1/3" SHARP Color CCD Sensor Picture Element NTSC: 510(H) x 492(V) ; PAL: 500(H) x 582(V) Horizontal Frequency NTSC : 15.734 KHz. ; PAL : 15.625 KHz. Vertical Frequency NTSC: 59.94 Hz. ; PAL: 50 Hz. Synchronization Internal , Negative Sync. Scanning System 2 : 1 Interlace Resolution Horizontal 380 TV Lines Sensitivity 0.2 Lux @F2.0 / 0 Lux with IR-LED S/N Ratio More than 48 dB (AGC OFF) Gain Control Automatic Gain Control (AGC) Electronic Shutter Auto: 1/60 (50) sec. ~ 1/100,000 sec. White Balance Auto White Balance (2500 K ~ 9500 K) Backlight Compensation Automatic Backlight Compensation Lens Built-in 6.0mm/F2.0 Lens (Optional with 4.3 / 8.0 / 12.0 / 16.0mm/F2.0 Lens) Video Output 1.0 Vp-p Composite Video Output ; 75 Ohm Power Consumption Max. 1.5W for Board Camera Infra Red Luminary 45 x IR-LED Built-in , 2 x High-power IR-LED , 2 x Long-distance IR-LED Wavelength 850 nm Beam Spread Angle 30 degree of Beam Spread Angle with 90 Degree of Projection Angle Illuminating Distance Max. 50 Meter Illuminator Active Limit Under 10 Lux (with Linear Control) Power Consumption Max. 18.0 W (with all IR-LED full ON) Power Supply DC 12V Operating Temperature - 10 ~ + 60 degree C / RH 85% or Less Waterproof Standard IP 66 Waterproof Standard Construction Camera in Rectangular Aluminum Housing Dimension 140mm (W) x 113mm (H) x 353 mm (L) Weight 1.3 Kgs;
