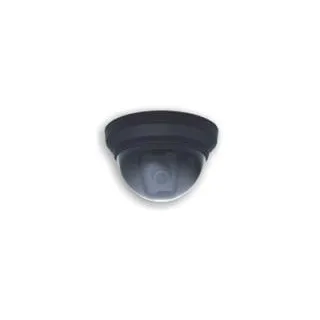

Camera Camtek CK-55CD

Image Pick-up Device

1/3" SONY SUPER HAD

Effective Picture Elements

NTSC : 768 x 494 , PAL : 752 x 582(H x V)

Horizontal Resolution

480 TV Lines

Minimum Illumination

0.2LUX @ F2.0

S/N Ratio

More than 48 Db

Auto Electronic Shutter

NTSC : 1/60s~1/100,000s , PAL : 1/50s~1/110,000s

Gamma Characteristic

0.45

Lens Furnished

Board lens 4.0 mm / F2.0 (optional : 2.5 /4.3 /6.0 /8.0 /12 /16mm)

Gain Control

Automatically

White Balance

Automatically (2500K~9500K)

Synchronous System

Negative sync. Internal

Video Output

1 Vp-p Composite Video / 75 Ohms.

Power Supply

DC 12V / 160 mA

Operating Temp.

-10℃ to 50℃ (14℉ to 122℉)

Dimensions

100 mm(Φ) X 60 mm(H)

Audio Output (Option)

2 Vp-p / 50 Ohms. RCA connector.
