Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

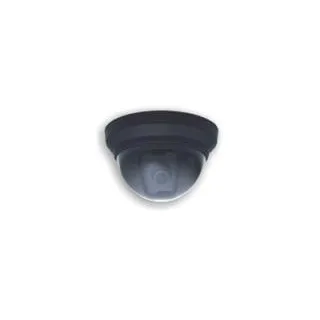

Image Pick-up Device 1/3“ SHARP CCD Effective Picture Elements NTSC : 768 x 494 , PAL : 752 x 582(H x V) Horizontal Resolution 470 TV Lines Minimum Illumination 0.2 LUX @ F2.0 S/N Ratio More than 48 Db Auto Electronic Shutter NTSC : 1/60s~1/100,000s

Image Pick-up Device 1/3“ SHARP CCD Effective Picture Elements NTSC : 768 x 494 , PAL : 752 x 582(H x V) Horizontal Resolution 470 TV Lines Minimum Illumination 0.2 LUX @ F2.0 S/N Ratio More than 48 Db Auto Electronic Shutter NTSC : 1/60s~1/100,000s , PAL : 1/50s~1/110,000s Gamma Characteristic 0.45 Lens Furnished Board lens 3.6 mm / F2.0 (optional: 4.3/6.0/8.0/12/16mm) Gain Control Automatically White Balance Automatically (2500K~9500K) Synchronous System Negative sync. Internal Video Output 1 Vp-p Composite Video / 75 Ohms. Power Supply DC 12V Operating Temp. -10℃ to 50℃ (14℉ to 122℉) Dimensions 100 mm(Φ) X 60 mm(H) Audio Output (Option) 2 Vp-p / 50 Ohms. RCA connector.
