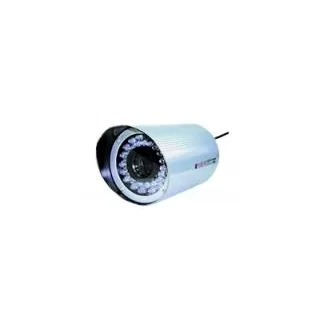

Camera Camtek CK-52CIR

Pick Up Device

1/3" SONY SUPER HAD

Picture Element

NTSC: 510(H) x 492(V) ;
PAL: 500(H) x 582(V)

Scanning System

PAL : 625 Lines , 50Field / S ; NTSC : 525 Lines , 60Fied/S

Vertical Frequency

NTSC: 59.94 Hz. ; PAL: 50 Hz.

Synchronization

Internal , Negative Sync.

Scanning System

2 : 1 Interlace

Resolution

Horizontal 420 TV Lines

Sensitivity

0.5 Lux @F2.0 / 0 Lux with IR-LED

S/N Ratio

More than 48 dB (AGC OFF)

Gain Control

Automatic Gain Control (AGC)

Electronic Shutter

Auto: 1/60 (50) sec. ~ 1/100,000 sec.

White Balance

Auto White Balance (2500 K ~ 9500 K)

Backlight Compensation

Automatic Backlight Compensation

Lens Built-in

6.0mm/F2.0 Lens (Optional with 4.3 / 8.0 / 12.0 / 16.0mm/F2.0 Lens)

Video Output

1.0 Vp-p Composite Video Output ; 75 Ohm

Power Consumption

Max. 1.5W for Board Camera

Infra Red Luminary

45 x IR-LED Built-in , 12 x High-power IR-LED

Wavelength

850 nm

Beam Spread Angle

30 degree of Beam Spread Angle with 90 Degree of Projection Angle

Illuminating Distance

Max. 50 Meter

Illuminator Active Limit

Under 10 Lux (with Linear Control)

Power Consumption

Max. 18.0 W (with all IR-LED full ON)

Power Supply

DC 12V

Operating Temperature

- 10 ~ + 60 degree C / RH 85% or Less

Waterproof Standard

IP 66 Waterproof Standard

Construction

Camera in Rectangular Aluminum Housing
