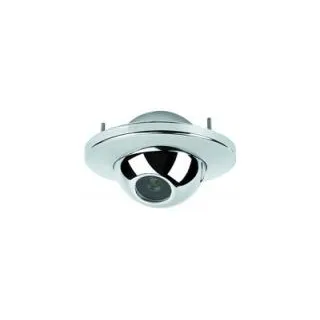

Camera Camtek CK-32CR

Image device


1/3" SONY SUPER HAD


1/3" SONY SUPER HAD HQ1

Pixels


NTSC : 510(H) x 492(V) ;
PAL: 500(H) x 582(V)


NTSC: 768(H) x 494(V) ;
PAL: 752(H) x 582(V)

Lens

3.7mm Pinhole Lens


Scanning system


PAL : 625 Lines , 50Field/S ; NTSC : 525 Lines , 60Fied/S


Sync system


Inter line Synchronization


Horizontal resolution

420 TV line


550 TV line

Video output

1Vp-p , 75 ohms, Negative

S/N Ratio

More than 48dB (AGC off)


Gamma characteristic

0.45


White balance


Auto White Balance(AWB)


B.L.C


Back Light Compensation (Auto)


Minimum illumination


0.5 LUX / F1.2

0.8 LUX / F1.2

Electronics shutter


PAL: 1/50~1/100,000 sec


Power input


DC12V


Operation temperature


-10¢XC ~ +50¢XC RH95%Max


Storage temperature


-20¢XC ~ +60¢XC RH95%Max
