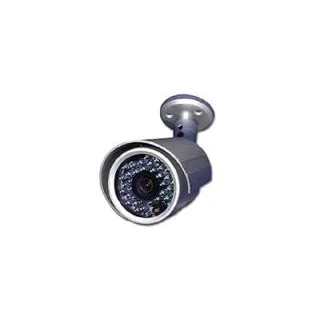

Camera Camtek CK-21CIR

Pick Up Element 1/3" SHARP Color CCD Sensor Picture Element NTSC: 510(H) x 492(V) ; PAL: 500(H) x 582(V) Horizontal Frequency NTSC: 15.734 KHz. ; PAL: 15.625 KHz. Vertical Frequency NTSC: 59.94 Hz. ; PAL: 50 Hz. Synchronization Internal Scanning System 2 : 1 Interlace Resolution Horizontal 380 TV Lines Low-light Sensitivity 0.2 [email protected] without IR ; 0 Lux with IR S/N Ratio More than 48 dB (AGC OFF) Gain Control Automatic Gain Control Electronic Shutter Auto: 1/60 (50) sec. ~ 1/100,000 sec. White Balance Auto White Balance (2500 K ~ 9500 K) Gamma Characteristic r = 0.45 Lens Built-in 3.6mm/F2.0 Lens (Optional with 4.3 / 6.0 / 8.0 / 12.0mm Lens) Video Output 1.0 Vp-p Composite Video Output ; 75 Ohm Waterproof Standard IP 66 Waterproof Standard Operating Temperature - 10 ~ + 50 degree C / RH 85% or Less Power Consumption Max. 1.5 W for Board Camera ; Max. 6.8 W for Board Camera & IR-LED Infra Red Luminary 24 Units of IR-LED ; Life: 6,000 Hours Wavelength 850 nm Beam Spread Angle 35 degree Illuminating Distance Max. 20 Meter Illuminator Active Limit 10 Lux Power Consumption Max. 5.3 W (with IR-LED Full ON)
