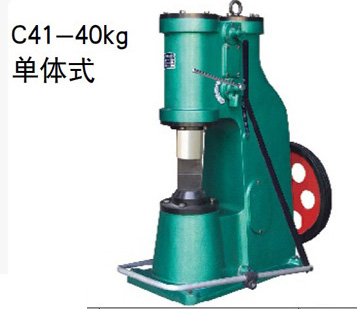

Búa hơi C41-40kg

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Our all models are C41-16KG, C41-20KG(integrated), C41-20KG(separate),C41-25KG, C41-40KG(integrated), C41-40KG(separate),C41-55KG, C41-75KG, C41-150KG. Air hammer is widely used for general forging works, such as drawing-out, upsetting, punching

Our all models are C41-16KG, C41-20KG(integrated), C41-20KG(separate),

C41-25KG, C41-40KG(integrated), C41-40KG(separate),

C41-55KG, C41-75KG, C41-150KG.

Air hammer is widely used for general forging works, such as drawing-out, upsetting, punching,

chiseling, forging, welding, bending and twisting. It is also used for forge in bolster dies.

Air hammer is also called forging hammer, blacksmithing hammer, pneumatic forging hammer,

power hammer and so on. Air hammer falling weight at 16kg, 20kg, 25kg, 40kg, 55kg, 75kg,

150kg mainly for artistic wrought iron, artistic forging, blacksmith, agriculture tools and small open die forging parts.

SPECIFICATION	UNIT	C41-40kg
Max. hit energy	kj	0.53
Height of working area	mm	245
Hit number	min -1	245
Dimension of top and bottom die surface(LxW)	mm	120 x 50
Max. square steel can be forged	mm	52 x 52
Max. round steel can be forged(Diameter)	mm	￠68
Motor power	kw	4
Speeds of motor	r. p. m	1440
Anvil weight	kg	400
Total weight	kg	1350
Overall dimensions(LWH)	mm	10806001430
