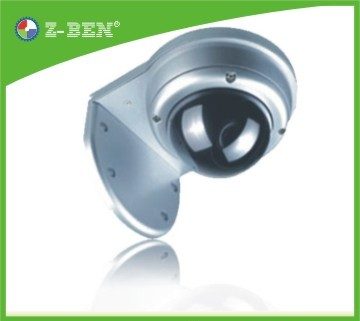

ZB-5017AS

 MODEL

ZB-5017AAS

Image Sensor

1/3" Sony supper HAD CCD

Horiontal resolution

540TVL

Pixels

PAL:752(H)*582(V)          NTSC:768(H)*494(V)

Signal SYSTEM

PAL

Sync SYSTEM

Internal Synchronization

Min. illumination

0.1 Lux

S/N Ratio

>48dB (AGC Off)

 Gamma Characteristic

0.45

Video Output

1.0Vp-p 75 Ω

Electronic Shutter Time

Auto, PAL 1/50-100.000Sec, NTSC 1/60-1/100.000Sec

Operation temperature

-10C - +50C RH95% Max

Storage temperature

-20C - +60C RH95% Max

White Balance

Auto

Gain control

Auto

Power supply

DC12V+(-)10%

Dimension

145*88 mm

 Manufacturer

Z-Ben
