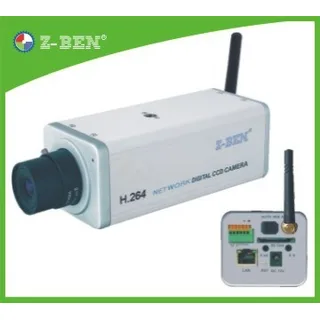

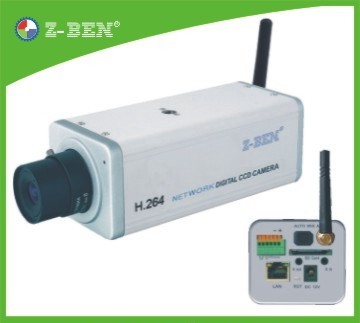

ZB-306AASWIP

 MODEL

ZB-306AASWIP

Image Senseer

1/3" Sony SUPER HAD CCD, 540 line

Auto Iris Control

DC drive

Vdeo Compression

H.264 Baseline Profile@Level 2.2

Video Definition

PAL:352*288(CIF), 704*288(2CIF), 704*576(D1)

 Image Senseer

NTSC:352*240(CIF), 704*240(2CIF), 704*480(D1)

Min.illumination

0.1Lux

Video Parameters

Brightness, Hue, Contrast, Saturation, Image quality

Lens Options

3.7mm

Transmission Frequency

2.4G

Transmission Power

500mW

Transmission Distance

500-100m

Streaming Format

Optional video streaming or audio & video composite streaming

Video Frame Rate

PAL: 1-25 frames/second

NTSC:1-30 frames/second

Video Compression Bitrate

16Kbit/S  4Mbit/S

Audio input

1 channel, linear input

Audio Compression

G.726

Audio output

1 channel, RCA interface, linear uotput

Supported Protocol

TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP,ICMP, POP3,NTP,IP sec, UPNP, RTP,RTCP

System Interface

10M/100M self-adapting Ethernet port

1 RS485 port

Wifi port 802.11b/g wireless network

Operating Temperatrue

-10C~+50C

Power Supply

DC 12V
