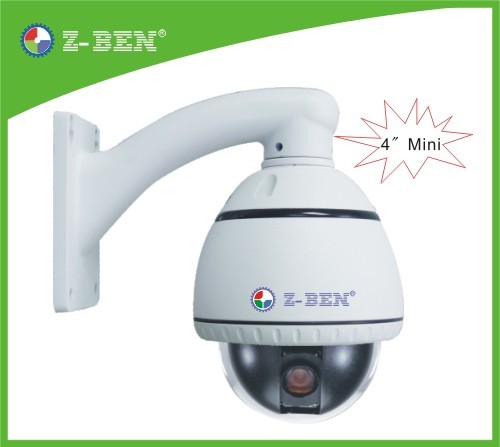

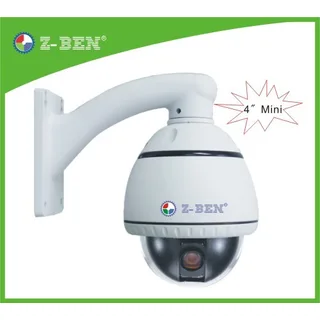

ZB-1016

 MODEL

ZB-1016

Signal SYSTEM

PAL/NTSC

Effective Resolution

440.000 Pixels

Horiontal resolution

480 TVL

S/N Ratio

>=48dB

White Balance

Auto tracking, Indoor/ourdoor Manual

Lens mount

216X f=4.1-73.8mm/220X  f=3.9-85.8mm

Shutter speed

1/1-1/10.000s

Electronic Shutter

Auto

Min focus

10mm(1x),100mm(27)

Minimum illumination

Auto/Bright/Shutter/IRIS

AGC

Auto/Manual

Exposal

Auto/Manual/Shutter/IRIS

BLC

on/off

Focus mode

Auto/Manual

Video output

10Vp-p, 75Ω(BNC)

Runnung speed

Min:1/S  Max:280/S

Comminication

RS485 bus

Focus Function

Auto/manual/zoom in (uot)trgger/manual trigger

Environment temperature

Indoor: (0C~+40C)   outdoor:  (-40C~+60C)

Environment humidity

<=95%(No dew)

Comminication

<=30W

Comminication Protocol

PELCO_D,  PELCO_P

Baud rate

1200bps/2400bps/4800bps/9600bps

Running speed

0.1 ~280/s(1-64 grade available)

Horizotal

360

Vertical

90

Auto Flip

 Horizotal 180,Vertical90

Preset location

128 presets

Speed Focus

Auto matching

Power Supply

AC24V 1.25A(indoor), 3A(uotdoor,with fan heating)

Dimensinons

4"
