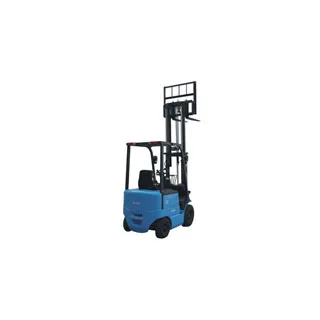

Xe nâng EOS electric CPD15

Model

CPD15

Power type

Battery

Rated capacity

kg

1500

Load center

mm

500

Lift height

mm

3000

Freelift height

mm

160

Fork size

mm

920*100*40

Fork outside spread(Min./Max)

mm

200/968

Mast tilt angle (forward/backward)

deg

6/12

length to face of fork

mm

2056

Overall width

mm

1090

Mast lowered height

mm

1995

Mast ectended height

mm

4042

Overhead guard height

mm

2162

turning radius

mm

1820

Front overhang

mm

429

Min.right angle stacking aisie width

mm

3370

Travel speed

km/h

11/13

Lifting speed

mm/sec

285/390

Max.grade ability

%

15

Service weight

kg

3120

Max.pull force (full load)

KN

6.5

Tyre Front

6.50-10-10PR

Tyre Rear

5.00-8-8PR

Tread Front

mm

890

Tread Rear

mm

920

Wheelbase

mm

1250

Ground clearance Full load/no load(Mast)

mm

95/110

Ground clearance Full load/no load(Frame)

mm

95/105

Battery voltage

v

48

Battery capacity

Ah

*400/440/480

Drive motor

kw/rpm

5.3/1700

Hydraulic motor

kw/rpm

8.2/1600

Controller
