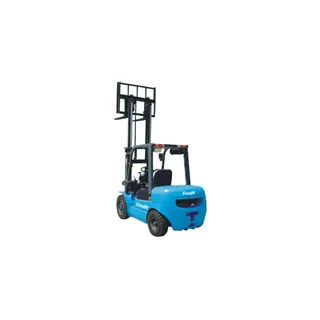

Xe nâng EOS Diesel CPCD30

Model

CPCD30

Power type

Diesel/Gasoline/LPG

Rated capacity

kg

3000

Load center

mm

500

Lift height

mm

3000

Freelift height

mm

145

Fork size

mm

1070*125*45

Mast tilt angle

deg

6/12

Front overhang

mm

494

length to fork face

mm

2720

Overall width

mm

1225

Mast lowered height

mm

2080

Mast ectended height

mm

4272

Overhead guard height

mm

2090

turning radius

mm

2460

Travel speed Full/no load(Hydraulic)

km/h

18/19

Travel speed Full/no load(Mechanical Shift I)

km/h

8.8/9

Travel speed Full/no load(Mechanical Shift II)

km/h

18.5/20

Lifting speed Full/no load

mm/sec

430

Max.grade ability

%

20

Service weight

kg

4380

Tyre Front

28*9-12-12PR

Tyre Rear

6.50-10-10PR

Tread Front

mm

1000

Tread Rear

mm

1000

Wheelbase

mm

1700

Ground clearance Full load/no load(Mast)

mm

110/135

Ground clearance Full load/no load(Frame)

mm

135/140
