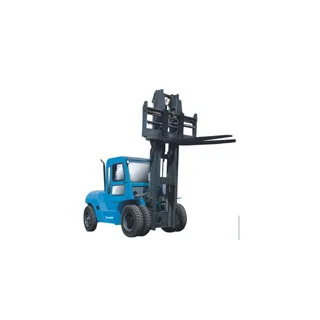

Xe nâng EOS Diesel CPCD100

Model

CPCD100

Power type

Diesel

Rated capacity

kg

10000

Load center

mm

600

Lift height

mm

3000

Freelift height

mm

210

Fork size

mm

1500*160*80

Fork outside spread Min./Max.

mm

420/2144

Mast tilt angle

deg

6/12

Front overhang

mm

733

length to fork face

mm

4258

Overall width

mm

2245

Mast lowered height

mm

2565

Mast ectended height

mm

4307

Overhead guard height

mm

2565

turning radius

mm

3900

Travel speed Full/no load(Forward I)

km/h

28/22

Travel speed Full/no load(Forward II)

km/h

Travel speed Full/no load(Backward I)

km/h

Lifting speed Full/no load

mm/sec

390/280

Max.grade ability

%

>20%

Max.draw bar pull

KN

Service weight

kg

12860

Tyre Front

9.00-20-14PR

Tyre Rear

9.00-20-14PR

Tread Front

mm

1600

Tread Rear

mm

1700

Wheelbase

mm

2800

Min.ground clearance Full load/no load(Mast)

mm

245/205

Min.ground clearance Full load/no load(Frame)

mm

343/323

Battery

v/Ah

2-12/100
