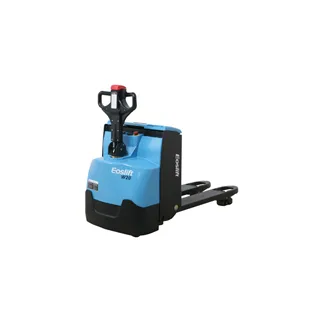

Xe nâng điện EOS-W20

Manufacturer's type designation

W20

Identification

Drive

Electric

Operator type

Pedestrian

Load capacity/rated load

kg

2000

Load centre distance

mm

600

Load distance

mm

950

Wheelbase

mm

1375

Weights

Service weight (with battery)

kg

610

Axle loading, laden front/rear

kg

1570/1040

Axle loading, unladen front/rear

kg

152/458

Wheels, Chassis

Tyres

PU

Tyre size, front

mm

80x120/80x80

Tyre size, rear

mm

115x55

Wheels number front/rear

2(4)/2

Track width, rear

mm

720

Basic Dimensions

Lift

mm

110

Height of tiller in drive position min./max.

mm

870/1220

Height lowered fork

mm

85

Overall length

mm

1830

Length to face of forks

mm

710

Overall width

mm

720

Fork dimensions

mm

1150/1200x185x55

Width across forks

mm

540/685

Aisle width for pallets 1000x1200 crossways

mm

2020

Aisle width for pallets 800x1200 lengthways

mm

1970

Turning radius

mm

1655

Performance Data

Travel speed, laden/unladen

km/h

3.5/3.5

Lift speed, laden/unladen

m/s

0.056/0.06

Lowering speed, laden/unladen

m/s

0.057/0.059

Gradeability, laden/unladen

%

5/7

Service brake

electromagnetic

E-Motor

Drive motor rating S260 min

kW

AC 1.5

Lift motor rating at S315%

kW

DC 2

Battery acc. to DIN 43531/35/36 A, B, C, no

3PZS210

Battery voltage, nominal capacity

V/Ah

24/210

Battery weight

kg

200

Others

Sound level at the driver's ear according to EN 12 053

dB(A)

70
