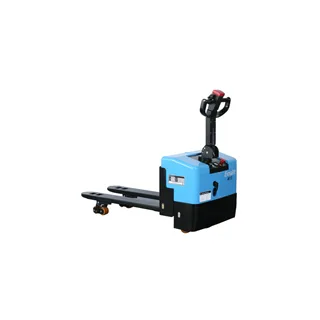

Xe nâng điện EOS-W13

Manufacturer's type designation

W13

Identification

Drive

Electric

Operator type

Pedestrian

Load capacity/rated load

kg

1300

Load centre distance

mm

600

Load distance

mm

1000

Wheelbase

mm

1265

Weights

Service weight (with battery)

kg

292

Axle loading, laden front/rear

kg

963/629

Axle loading, unladen front/rear

kg

73/219

Wheels

Chassis

Tyres

PU

Tyre size, front

mm

73x98/80x58

Tyre size, rear

mm

99.5x40

Wheels number front/rear

2(4)/2

Track width, rear

mm

725

Basic Dimensions

Lift

mm

120

Height of tiller in drive position min./max.

mm

850/1580

Height lowered fork

mm

75/85

Overall length

mm

1420

Length to face of forks

mm

450

Overall width

mm

725

Fork dimensions

mm

1150/1200x160x44

Width across forks

mm

540/685

Aisle width for pallets 1000x1200 crossways

mm

1720

Aisle width for pallets 800x1200 lengthways

mm

1540

Turning radius

mm

1384

Performance Data

Travel speed, laden/unladen

km/h

3.5/4

Lift speed, laden/unladen

m/s

0.056/0.06

Lowering speed, laden/unladen

m/s

0.057/0.059

Gradeability, laden/unladen

%

5/7

Service brake

Maintenance-free

E-Motor

Drive motor rating S260 min

kW

DC 0.6

Lift motor rating at S315%

kW

DC 0.8

Battery acc. to DIN 43531/35/36 A, B, C, no

Maintenance-free

Battery voltage, nominal capacity

V/Ah

24/70

Battery weight

kg

50

Others

Sound level at the driver's ear according to EN 12 053

dB(A)

70
