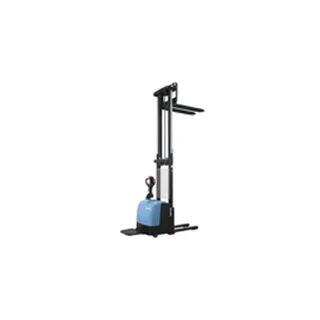

Xe nâng điện EOS T1233

Manufacturer type designation

T1233

Drive: electric (battery or mains), diesel, petrol, fuel gas, manual

electric

Type of operation: pedestrian, stand on, seated, order picker

stand on

Load capacity / rated load Q

kg

1200

Load centre distance c

mm

600

Wheelbase

mm

1307

Service weight incl. battery

kg

1210

Axle loading, laden front / rear

kg

1350/1060

Axle loading, unladen front / rear

kg

550/660

Tyres: solid rubber, superelastic, pneumatic, polyurethane

PU

Tyre size, front

80x70

Tyre size, rear

115x55

Wheels number, front / rear

2/4

Track width, front

mm

550

Track width, rear

mm

850

Lowered mast height

mm

2135

Free lift

mm

100

Lift height

mm

3300

Extended mast height

mm

3730

Height of tiller in drive position min. / max.

mm

1110/1460

Lowered height (Fork)

mm

85

Overall length

mm

1950/2370

Length to face of forks

mm

765

Overall width

mm

850

Width over forks

mm

550/680

Ground clearance, centre of wheelbase

mm

30

Minimum aisle width

mm

2450

Turning radius

mm

1482

Travel speed, laden / unladen

km/h

3/5

Lift speed, laden / unladen

m/s

0.13/0.23

Lowering speed, laden / unladen

m/s

0.13/0.23

Max. gradient performance, laden / unladen

%

5/7

Service brake

electromagnetic

Drive motor rating S2 60 min.

kW

AC 1.5

Lift motor rating at S3 15 %5)

kW

DC 3

Battery voltage, nominal capacity

V/Ah

24 / 210

Type of drive control

Impulse

Sound level at driver's ear acc. to EN 12 053

dB(A)

70
